Managed Fast Ethernet Switches

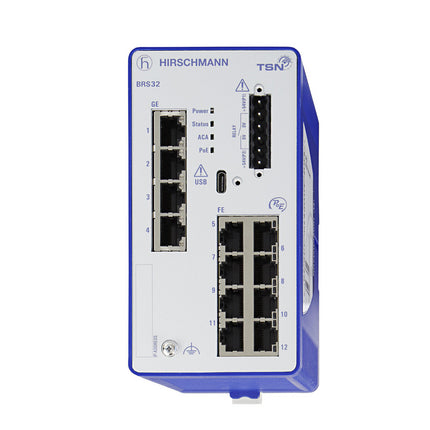

Hirschmann BRS32 series has same features as the BRS30 series but offers PoE capability on all non-Uplink RJ45 ports.


  • Advanced Security Features : Including wire-speed access control lists and automatic denial-of-service prevention
  • High Port Density: Up to 24 ports within a compact housing to connect a growing number of network devices with SFP or copper uplink port options available.
  • TSN support for Precise and Data Transmission: Simultaneously support multiple services on the network through TSN technology
  • PoE Capability : Support up to 240 W across 8 PoE/PoE+ ports without load sharing to ensure high power output
  • Future-Proof Design: Increased bandwidth and speed capabilities up to 2.5 Gigabits through adjustable SFPs without changing the appliance
  • Standard range part numbers offers HIOS Layer 2 standard software. HIOS Layer 2 Advanced software also available
  • Available in Extended Operating Temperature and Conformal Coated versions for more arduous operating environments
  • Available with additional Industry sector approvals such as cUL 61010-2-201,ATEX, IECEx T, DNVGL, IEC 61850-3
  • For all non-standard requirements please see the Configurator Tool for details and part numbers


      Part Number Article Number Description
      942 170-048 12-port Managed FE/GE PoE switch with 8 x TX PoE+ ports and 4x FE/GE SFP ports
      BRS32-8TX/4SFP-EEC 942 170-052 12-port Managed DIN Rail switch, 8x 10/100BASE TX / RJ45; 4x 100/1000Mbit/s fiber ; 8 x PoE(+) Ports
      942 170-097
      12-port Managed DIN Rail PoE switch, 8x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45; 8 x PoE(+) Ports
      942 170-098
      12-port Managed DIN Rail PoE switch, 8x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45; 8 x PoE(+) Ports


      BRS32 Series DATASHEET
