SITOP Lite
SITOP Lite

Siemens SITOP

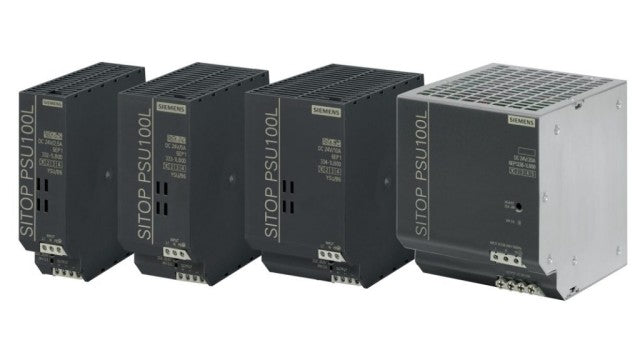

SITOP Lite

Cost-effective basic power supply

Siemens SITOP lite is the power supply series for basic requirements in the industrial environment, offering all the important functions at a low cost - without compromising quality and reliability. The wide-range input with manual switchover supports connection to a wide range of single-phase supply systems

FEATURES

  • 24 V/2.5 A, 5 A ,10 A and 20 A for industrial applications with standard requirements
  • 1-phase wide-range input with manual switchover
  • ­Narrow mounting width
  • ­High degree of efficiency
  • Green LED for "24 V OK"
  • ­Parallel connection possible
  • ­No lateral installation clearances required
  • ­Ambient temperature range of 0 °C to 60 °C (from 45 °C with derating)
  • ­Cooling through natural convection
  • ­Short-circuit and overload protection
  • Certification in accordance with CE and cULus

ORDERING INFORMATION

1-phase, DC 24 V

Part Number Article Number Description
PSU100L, 1-phase, DC 24 V/2.5 A 6EP1332-1LB00 SITOP PSU100L 24 V/2.5 A Stabilized power supply input: 120/230 V AC, output: DC 24 V/2,5 A
PSU100L, 1-phase, DC 24 V/5 A 6EP1333-1LB00 SITOP PSU100L 24 V/5 A Stabilized power supply input: 120/230 V AC, output: 24 V DC/5 A
PSU100L, 1-phase, DC 24 V/10 A 6EP1334-1LB00 SITOP PSU100L 24 V/10 A Stabilized power supply input: 120/230 V AC, output: DC 24 V/10 A
PSU100L, 1-phase, DC 24 V/20 A 6EP1336-1LB00 SITOP PSU100L 24 V/20 A Stabilized power supply input: 100-240 V AC output: 24 V DC/20 A

DOCUMENTS

SITOP Lite BROCHURE
