Kyland

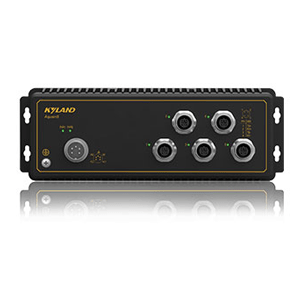

Aquam5-5T-LV-LV
Request a quote302245001 - Unmanaged 5-port FE EN50155 Switch with 5 TX M12 ports
Kyland Aquam5-5T-LV-LV is a EN50155 IP65/IP67 rated M12 5 port Unmanaged Ethernet Switch with 5 x 10/100Base-TX M12 ports,18-30VAC/12-48VDC(18-30VAC/9-60VDC) dual redundant power inputs ,IP65, -40°C to +75°C operating temperature
PRODUCT FEATURES
• Supports up to 5 x 10/100Base-TX ports with M12 D-code female connectors
• IP65 or IP67 protection class
• DIN Rail or Panel mounting
• Complies with EN50155, EN50121 and EN45545 industry standards
• Extended operating temperature range -40°C to +75°C
• Available with 24VAC/DC or 110VDC power inputs
• M12 A-coded female power input connector
ORDERING INFORMATION
| Part Number | Article Number | Description |
|---|---|---|
| Aquam5-5T-LV-LV | 302 245-001 | 5 x 10/100Base-TX M12 ports,18-30VAC/12-48VDC(18-30VAC/9-60VDC) dual redundant power inputs ,IP65, -40°C to +75°C operating temperature |
