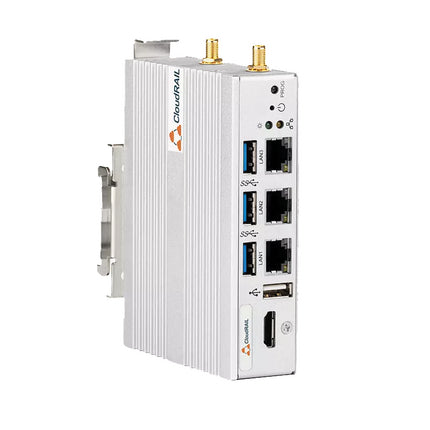

CloudRail.Box Max 4G

The CloudRail.Box Max supports secondary sensors, OPC UA, Modbus and VSE connectivity. With powerful processing, ample storage and optional 4G connectivity, it is ideal for advanced edge computing and connecting multiple data sources through a single gateway
    • Ports: 3 x 2.5 Gigabit Ethernet RJ45
    • Serial Interface: RS-485 / optional RS-232
    • Cellular: 4G LTE with Nano-SIM support
    • Processor: Intel Atom x6413E
    • Memory: 8 GB LPDDR4 RAM
    • Storage: 220 GB available storage
    • Security: TPM 2.0 and integrated firewall
    • Management: CloudRail.DMC device management cloud
    • Power: 12-24 VDC input
    • Mounting: 35 mm DIN rail
    • Housing: Steel and aluminium enclosure
    • Temperature: -20°C to +60°C operation
    • Approvals: CE, FCC, UL 62368-1
Ordering Information

Part Number

  • 942347002

Description

  • Industrial edge gateway with 4G connectivity, secure remote access and edge computing capabilities.
