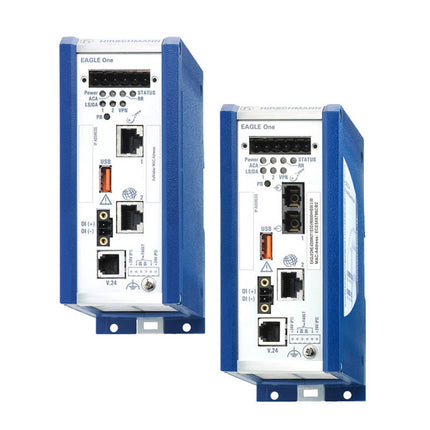

EAGLE One Series

Security Router

Hirschmann EAGLE One Series is a security router with extensive Layer 2 and Layer 3 redundancy features, combined with other highlights such as NAT and firewall

FEATURES

• All-round protection of automation networks with an optimal price-performance ratio
• Redundant backbone connections for production cells
• Firewall Learning Mode for easy and smooth commissioning
• Router redundancy plus stateful firewall and 1:1 NAT in Layer 3 mode
• Text-based configuration file for automated pre-configuration
• User-friendly configuration and diagnostics via Industrial HiVision, HiView, HiDiscovery, offline configuration tool and web interface
• Transparent Layer 2 mode (e.g. for RSTP and MRP)
• Wide range of transmission and encryption standards (PPPoE, PPP, IKEv1/v2, IPsec, NAT)
• A variety of security mechanisms (stateful packet inspection firewall, VPN)
• Digital input for controlling VPN connections
• Numerous management functions (SNMPv3, SSH2/SFTP, HTTPS, V.24 CLI, SSH1, SNMPv1/2)
• Optional extended operating temperature range from -40°C to +70°C (standard is 0°C to +60°C)
• Variants for twisted-pair cables (RJ45) and multimode fibers (SC)
• Robust metal housing for DIN rail mounting
• Meets principal standards and approvals:
• – Energy sector: IEC 61850-3, IEEE 1613
• – Hazardous areas: ATEX, ISA-12.12.01 Class 1 Div. 2
• – Transport sector: EN 50121-4
• – Shipping: Germanischer Lloyd
• Identical software to the EAGLE20, with identical housing dimensions
• Perfectly tailored for use with all Ethernet products from Hirschmann, GarrettCom and Belden
