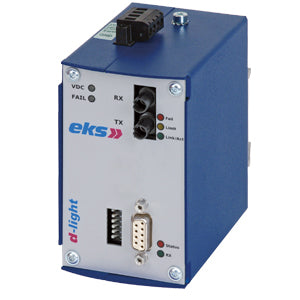

010007431-L-FV - EKS DL-CAN Single channel Single-mode ST fiber repeater
EKS DL-CAN/1x13-SM-ST is a is a CANbus to fiber repeater which can connect CAN field bus networks (e.g. CAN, CANopen, DeviceNet) via Single-mode fiber-optic cable point to point to extend network distances, overcoming the limitations of copper cables.
PRODUCT FEATURES
• DIN-Rail compact metal housing
• Caters for CAN transmission speeds up to 1000K Baud
• Suitable for CAN, CANopen and DeviceNet protocols
• For point to point applications over Single-mode fiber-optic typically up to 30Kms
• FiberView ‘Traffic Light’ fiber-optic link monitoring diagnostics built-in
• Wide Operating Temperature range –40 °C – +70 °C
• 12–30 VDC power input range
• Ideal for CANbus transmission in ‘noisy’ EMC environments
ORDERING INFORMATION
| Part Number |
Article Number |
Description |
| DL-CAN/1x13-SM-ST |
010007431-L-FV |
EKS DL-CAN Single channel CANbus to Single-mode ST fiber repeater for point to point fiber links with FiberView |
DOCUMENTS
DL-CAN/1x13-SM-ST DATASHEET
