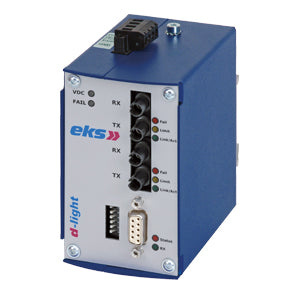

010007481-L-FV - EKS DL-CAN Dual channel Single-mode ST fiber repeater
EKS DL-CAN/2x13-SM-ST is a Dual Channel CANbus to fiber repeater which can connect CAN field bus networks (e.g. CAN, CANopen, DeviceNet) via Single-mode fiber-optic cable in Line/Multi-drop or Star fiber topologies to extend network distances, overcoming the limitations of copper cables.
PRODUCT FEATURES
• DIN-Rail compact metal housing
• Caters for CAN transmission speeds up to 1000K Baud
• Suitable for CAN, CANopen and DeviceNet protocols
• Dual fiber-optic channels
• For Line/Multi-drop or Star fiber topology applications over Single-mode fiber-optic typically up to 30Kms
• FiberView ‘Traffic Light’ fiber-optic link monitoring diagnostics built-in
• Wide Operating Temperature range –40 °C – +70 °C
• 12–30 VDC power input range
• Ideal for CANbus transmission in ‘noisy’ EMC environments
ORDERING INFORMATION
| Part Number |
Article Number |
Description |
| DL-CAN/2x13-SM-ST |
010007481-L-FV |
EKS DL-CAN Dual channel CANbus to Single-mode ST fiber repeater for Line/Multi-drop or Star fiber topologies with FiberView |
DOCUMENTS
DL-CAN/2x13-SM-ST DATASHEET
