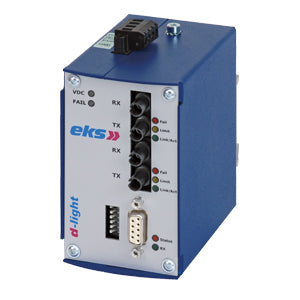

010007581-L - EKS DL-CAN Redundant-Ring Dual channel Single-mode ST fiber repeater
EKS DL-CANR/2x13-SM-ST-L is a Dual Channel Redundant Ring CANbus to fiber repeater which can connect CAN field bus networks (e.g. CAN, CANopen, DeviceNet) via Single-mode fiber-optic cable in a Redundant -Ring topology to give network resilience and extend network distances, overcoming the limitations of copper cables.
PRODUCT FEATURES
• DIN-Rail compact metal housing
• Caters for CAN transmission speeds up to 1000K Baud
• Suitable for CAN, CANopen and DeviceNet protocols
• Dual fiber-optic channels with fiber-optic ring redundancy feature
• For Redundant Ring fiber topology applications over Single-mode fiber-optic typically
up to 30Kms
• FiberView ‘Traffic Light’ fiber-optic link monitoring diagnostics built-in
• Wide Operating Temperature range –40 °C – +70 °C
• 12–30 VDC power input range
• Ideal for CANbus transmission in ‘noisy’ EMC environments
ORDERING INFORMATION
| Part Number |
Article Number |
Description |
| DL-CANR/2x13-SM-ST-L |
010007581-L |
EKS DL-CAN Redundant-Ring Dual channel CANbus to Single-mode ST fiber repeater for redundant fiber ring topologies with FiberView |
DOCUMENTS
DL-CANR/2x13-SM-ST-L DATASHEET
