EL50 Series

Request a quote

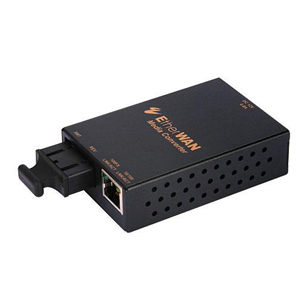

Mini-Sized 10/100BASE-TX to 100BASE-FX Media Converter

EtherWAN EL50 Series provides media conversion between 10/100BASE-T(X) and 100BASE-FX Fiber. Easy plug-and-play design facilitates network infrastructure construction. The EL50 series is designed for SC or ST fiber connection applications. The compact size of EL50 is suitable for space limit installation and EL50 is the ideal media converter for enterprise environments.

FEATURES

  • Mini-sized media converter
  • Link Fault Pass Through (LFPT)
  • 24VAC power input by terminal block
  • 1 x 10/100BASE-TX port
  • 1 x 100BASE-FX port
  • Operating Temperature 0°C to 45°C
  • Desktop
  • Weight 140g
  • Metal case



CONFIGURATOR

Model
EL50XX-YY-ZZ 10/100BASE-TX to 100BASE-FX Media Converter



100FX Fiber Type-Distance Options (XX-YY)
T Multi Mode (ST) -2Km (1310nm)
C Multi Mode (SC) -2Km (1310nm)
T-20 Single Mode (ST) - 20Km (1310nm)
C-20 Single Mode (SC) - 20Km (1310nm)
C-40 Single Mode (SC) - 40Km (1310nm)
CA-2 Multi Mode (SC) WDM -TX:1310nm/RX:1550nm - 2Km
CB-2 Multi Mode (SC) WDM -TX:1550nm/RX:1310nm - 2Km
CA-5 Multi Mode (SC) WDM -TX:1310nm/RX:1550nm - 5Km
CB-5 Multi Mode (SC) WDM -TX:1550nm/RX:1310nm - 5Km
CA-20 Single Mode (SC) WDM -TX:1310nm/RX:1550nm - 20Km
CB-20 Single Mode (SC) WDM -TX:1550nm/RX:1310nm - 20Km
CA-40 Single Mode (SC) WDM -TX:1310nm/RX:1550nm - 40Km
CB-40 Single Mode (SC) WDM -TX:1550nm/RX:1310nm - 40Km



Power Adapter Options (ZZ)
A with external power adapter for AU
E with external power adapter for EU
J with external power adapter for JP
K with external power adapter for UK
U with external power adapter for USA
AC with 24VAC, 24VDC Terminal Block Power Interface

 *More 100FX fiber options are also available upon request
