EX27000 Series
Request a quote

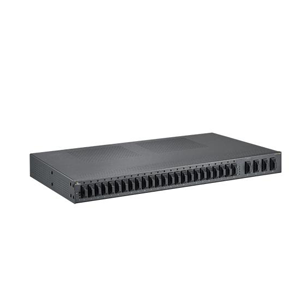

Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options
EtherWAN EX27000 series is equipped with 24 fast Ethernet ports and 4 gigabit uplink ports with fixed fiber or SFP options. Industrial-grade allows for fan-less operation in high EMI and vibration environments with a temperature range from -10 to 60°C (14 to 140°F).
FEATURES
- 24 x 10/100BASE-TX ports
- 24 x 100BASE-FX ports
- 4 x Gigabit ports
- Operating Temperature -10°C to 60°C
- Rack mounting
- Weight 5Kg
- Metal case
- IP30
CONFIGURATOR
| Model | |
|---|---|
| EX27604-0XYZ | 24-port 10/100BASE-TX +4-port Gigabit Managed Ethernet Switch |
| EX27424-WXYZ | 16-port 10/100BASE-TX +8-port 100BASE-FX +4-port Gigabit Managed Ethernet Switch |
| EX27244-WXYZ | 8-port 10/100BASE-TX +16-port 100BASE-FX +4-port Gigabit Managed Ethernet Switch |
| EX27064-WXYZ | 24-port 100BASE-FX +4-port Gigabit Managed Ethernet Switch |
| EX27064-V0VZ | 24-port 100BASE-SFP +4-port Gigabit SFP Combo Managed Ethernet Switch |
*Rack mounting kit included.
| 100FX Fiber Options (W) | |
|---|---|
| 1 | Multi Mode (SC) - 2Km |
| 2 | Multi Mode (ST) - 2Km |
| 6 | Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-2Km |
| 7 | Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-2Km |
| 8 | Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-5Km |
| 9 | Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-5Km |
| A | Single Mode (SC) - 20Km |
| P | Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-20Km |
| Q | Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-20Km |
| V | SFP |
| Number of Fixed Gigabit Fibers (X) | |
|---|---|
| 0 | None |
| 4 | Four Gigabit Fiber Ports |
| Gigabit Port Options (Y) | |
|---|---|
| 3 | 1000BASE-SX (SC) - 550m |
| 4 | 1000BASE-SX (SC) - 2Km |
| A | 1000BASE-LX (SC) - 10Km |
| B | 1000BASE-LX (SC) - 20Km |
| R | 1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km |
| S | 1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm-20Km |
| V | 4-port 100/1000BASE SFP Combo with 10/100/1000BASE-TX |
*More Gigabit options also available upon request.
| Power Input Interface (Z) | |
|---|---|
| T | ±48VDC (Terminal Block) |
| W | 88-300VDC or 100-240VAC (Terminal Block) |
| C | 100-240VAC (AC Inlet) |
| TR | ±48VDC Redundant (Terminal Block) |
| WR | 88-300VDC or 100-240VAC Redundant (Terminal Block) |
| CR | 100-240VAC Redundant (AC Inlet) |
