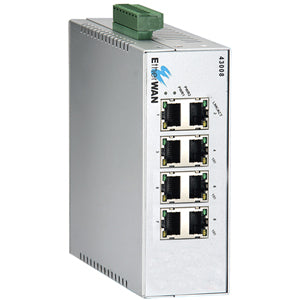

EtherWAN
EX43000 Series
Unmanaged 8-port 10/100BASE Ethernet Switch
EtherWAN EX43000 Series is an 8-port industrial unmanaged Fast Ethernet Switch with 8 x 10/100BASE ports, or a combination of Fast Ethernet copper ports and 2 x 100FX ports
FEATURES
- 8 or 6 x 10/100BASE-TX ports
- 0 or 2 x 100BASE-FX ports
- Operating Temperature -40 to 85°C
- DIN-Rail or Panel mounting
- Weight 0.51Kg
- Aluminium case
- IP30
CONFIGURATOR
| Model | |
|---|---|
| EX43008-00-1-AA | 8-port 10/100BASE-TX Industrial Unmanaged Ethernet Switch |
| EX43026-XY-1-AA | 6-port 10/100BASE-TX +2-port 100BASE-FX Industrial Unmanaged Ethernet Switch |
*DIN-Rail mounting kit included.
| 100FX Fiber Options (XY) | |
|---|---|
| 1A | Multi Mode (SC) - 2Km |
| 1B | Multi Mode (ST) - 2Km |
| 2A | Single Mode (SC) - 20Km |
| 2D | Single Mode (ST) - 20Km |
| 2E | Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-20Km |
| 2G | Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-20Km |
| V | 100BASE SFP |
*More 100FX Fiber options also available upon request.
| Optional Accessories | |
|---|---|
| KP-AA96-480 | Panel Mounting Kit |
| KR-BKEL900 | Rack Mounting Kit |
| HDR-30-24 | 30W/1.5A DIN-Rail 24VDC Industrial Power Supply |
| HDR-60-24 | 60W/2.5A DIN-Rail 24VDC Industrial Power Supply |
| EDR-75-24 | 75W/3.2A DIN-Rail 24VDC Industrial Power Supply |
