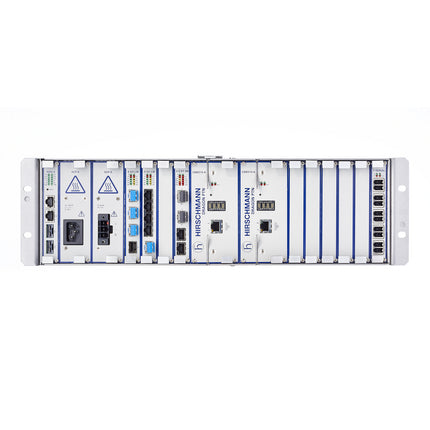

942228002 - DRAGON PTN Switch Chassis w. 6 Interfaces
Hirschmann DRAGON PTN2206 is a full gigabit MPLS-TP Switch with 6 media modules, up to 2 x 10 Gigabit Ethernet and 16 x 1 Gigabit Ethernet, modular design with various module configurations (PTN-4-E1T1-L, PTN-7-SERIAL, PTN-2-OLS, etc.), hot pluggable modules and power supply
PRODUCT FEATURES
• Up to 2 x 10 Gigabit Ethernet and 16 x 1 Gigabit Ethernet, modular design with various module configurations (PTN-4-E1T1-L, PTN-7-SERIAL, PTN-2-OLS, etc.),
hot pluggable modules and power supply
• Total Slots: 2 x CPU + 2 x Power Supply + 6 x Interface Cards
• From 10/100 Mbps to 40 Gbps aggregation of traffic; Scalability through MPLS-TP; Scalable switching capacity from 64 Gbps to 720 Gbps; Nodes with 4
interface positions up to 15 interface positions
• Built-in power supply – internal and redundant, 175 W up to 1000 W rated power, PoE up to 480 W
• HiProvision platform for user friendly and fast deployment of the network. Supported by the automatic setup of the DCN and OAM features for continuous
monitoring. SNMP v1/v2/v3
• Operating temperature: -30 ºC to 65 ºC
• Mounting: 19” Control Cabinet or DIN-Rail
• Protection class IP20
ORDERING INFORMATION
| Part Number |
Article Number |
Description |
| DRAGON PTN2206 |
942 228-002 |
Up to 2 x 10 Gigabit Ethernet and 16 x 1 Gigabit Ethernet, modular design with various module configurations (PTN-4-E1T1-L, PTN-7-SERIAL, PTN-2-OLS, etc.), hot pluggable modules and power supply |
DOCUMENTS
DRAGON PTN2206 DATASHEET
