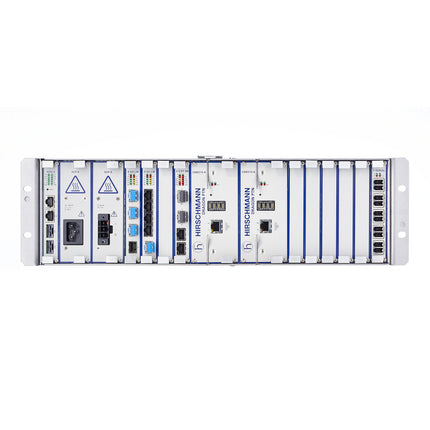

942228003 - DRAGON PTN Switch Chassis w. 9 Interfaces
Hirschmann DRAGON PTN2209 is a full gigabit MPLS-TP switch with 9 media modules, up to 4 x 10 Gigabit Ethernet and 27 x 1 Gigabit Ethernet L2/L3, modular design with various module configurations (PTN-4-E1T1-L, PTN-7-SERIAL, PTN-2-OLS, etc.), hot pluggable modules and power supply
PRODUCT FEATURES
• Up to 4 x 10 Gigabit Ethernet and 27 x 1 Gigabit Ethernet L2/L3, modular design with various module configurations (PTN-4-E1T1-L, PTN-7-SERIAL, PTN-2-
OLS, etc.), hot pluggable modules and power supply, future proof 40 Gigabit Ethernet (available soon)
• Total Slots: 2 x CPU + 2 x Power Supply + 9 x Interface Cards
• From 10/100 Mbps to 40 Gbps aggregation of traffic; Scalability through MPLS-TP; Scalable switching capacity from 64 Gbps to 720 Gbps; Nodes with 4
interface positions up to 15 interface positions
• Built-in power supply – Internal and redundant, 175 W up to 1000 W rated power, PoE up to 480 W
• HiProvision platform for user friendly and fast deployment of the network. Supported by the automatic setup of the DCN and OAM features for continuous
monitoring. SNMP v1/v2/v3
• Operating temperature: -20 ºC to 65 ºC
• Mounting: 19” Control Cabinet or DIN-Rail
• Protection class IP20
ORDERING INFORMATION
| Part Number |
Article Number |
Description |
| DRAGON PTN2209 |
942 228-003 |
Up to 4 x 10 Gigabit Ethernet and 27 x 1 Gigabit Ethernet L2/L3, modular design with various module configurations (PTN-4-E1T1-L, PTN-7-SERIAL, PTN-2-OLS, etc.), hot pluggable modules and power supply, future proof 40 Gigabit Ethernet (available soon) |
DOCUMENTS
DRAGON PTN2209 DATASHEET
