Hirschmann

MM3-1FXM2/3TX1

943839101 - Media module for MICE Switches

Hirschmann MS20/MS30 and MM2/MM3/MM4 Series products are now obsolete. There is not a direct replacement offered but we recommend Hirschmann MSP30/MSP40 Series with MSM20/30/40/50 modules as the most suitable alternative product

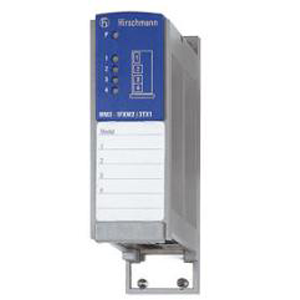

Hirschmann MM3-1FXM2/3TX1 is an 100BASE-TX and 100BASE-FX single mode media module for MICE switches with 1 x 100BASE-FX, SM cables, 1550 nm, SC sockets, 3 x 10/100BASE-TX, TP cables, RJ45 sockets

PRODUCT FEATURES

• Media module for MICE Switches MS20, MS30
• 1 x 100Base-FX Multi Mode ports
• SC and 3 x 10/100BASE-TX, RJ45 connectors
• Multimode fiber (MM) 50/125 pm: 0 – 5000 m; 8 dB link budget at 1300 nm; A = 1 dB/km, 3 dB reserve, B = 800 MHz x km
• Multimode fiber (MM) 62.5/125 pm: 0 – 4000 m; 11 dB link budget at 1300 nm; A = 1 dB/km, 3 dB reserve, B = 500 MHz x km
• Power requirements: Power supply via the backplane of the MICE switch
• Operating Temperature range: 0 ºC to +60 ºC standard (optional -40ºC to +70ºC)
• Protection class: IP 20

ORDERING INFORMATION

Part Number	Article Number	Description
MM3-1FXM2/3TX1	943 839-101	1 x 100BASE-FX, MM cables, SC sockets, 3 x 10/100BASE-TX, TP cables, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity

DOCUMENTS

MM3-1FXM2/3TX1 DATASHEET

Ordering Information

Part Number

Description

Documentation
