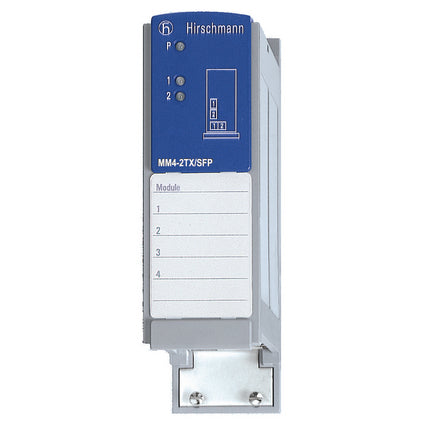

943622001 - Media module for MICE Switches
Hirschmann MM4-2TX/SFP is a Media Module for Mice Switches with 2 x 1000BASE-fiber with SFP modules, or, 2 x 10/100/1000BASE-TX, TP cable, RJ45 ports
PRODUCT FEATURES
• Media module for MS30 and MS4128 MICE Switches
• With 2 Gigabit Combo Ports SFP/RJ45 – use of either SFP port disables the related RJ45 port and vice versa
• 2 x Gigabit Ethernet SFP Slots (empty) for M-SFP range Gigabit Ethernet SFP Transceivers (SFP’s optional)
• 2 x 10/100/1000Base-TX ports, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity
• Maximum 2 available ports
• Power supply via the backplane of the MICE switch
• Power consumption: max 5.8W
• Dimensions: 38 x 110 x 118 mm
• Weight: 160g
• Operating Temperature range: 0°C to +60°C
• Protection class: IP 20
ORDERING INFORMATION
Part Number |
Article Number |
Description |
MM4-2TX/SFP |
943 622-001 |
MS30 only module. With 2 x Gigabit Combo ports (RJ45 or SFP slot selectable) For left side module slot only on MS30 switches |
DOCUMENTS
MM4-2TX/SFP DATASHEET
