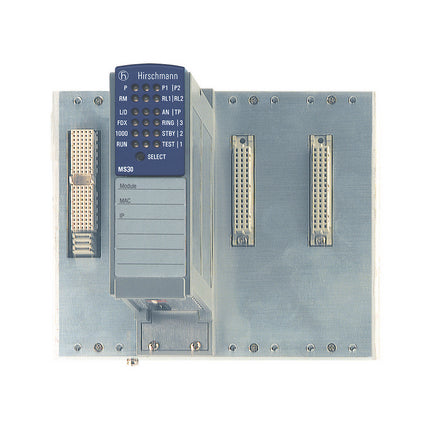

943435006 - MICE 3 slot backplane Managed GE/FE Switch
Hirschmann MS30-0802SAAP – 943435006 MICE 3 slot backplane Managed GE/FE switch. 2 GE uplink ports and 8 FE ports max. Professional software.
The MS30-0802SAAP is a modular switch with 3 module slots offering 1 x Gigabit module (2 ports) and 2 x FE modules for up to 8 Fast Ethernet (100Base) ports. Using MICE modules (MM2 and MM3 series) a wide choice of FE port options can be selected. Use module MM4-2TX/SFP for Gigabit module requirement.
• Compact DIN-Rail mounting backplane design
• Fully Managed Layer 2 switch
• All switches support 2 Gigabit uplink ports and up to 8 Fast Ethernet ports
• Select appropriate FE modules to give required number of 10/100Base TX RJ45 or 100 Base FX ports (MM or SM). To be ordered separately
• Select appropriate Gigabit module for uplink and Gigabit ring applications (Left side slot only)
• SFPs required for Gigabit fiber uplinks (to be ordered separately)
• Hirschmann ‘Hiper Ring’ redundancy supported
• Available with a wide range of industrial approvals and certifications
• Professional (P) software
• 5 year Warranty
||MICE 3 slot backplane Managed GE/FE switch. 2 GE uplink ports and 8 FE ports max. Enhanced software
