Hirschmann

MSP40-20-3A

Request a quote

942076013 - 20-port Modular Full Gigabit Ethernet Switch

Std Part No: MSP40-00200SCY9MRHHE3AXX.X

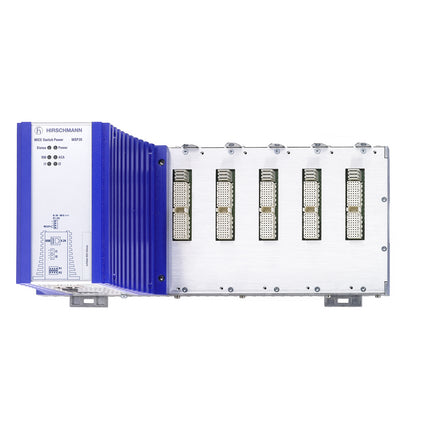

Hirschmann MSP40-20-3A is a Modular Full Gigabit DIN Rail Managed I.E Switch with up to 16 x GE TX/SFP ports with 4 x 2.5 GE or 2 x 10 GE SFP ports, 18-60V DC, 0°C to + 60°C, Software HiOS Layer 2 Advanced. Y9: CE/EN/UL60950 Approvals

PRODUCT FEATURES

• Increase bandwidth with 28 Gigabit Ethernet ports
– Reusable modules that can be used on any slot (first slot is reserved for a newly designed and unique 2.5 GE module)
– Up to four 2.5 GE ports for high availability with media redundancy protocol (MRP) and link aggregation
– 10 Gigabit-ready (future module upgrade)
• Modular setup with hot swappable module slots and Layer 2/Layer 3 capabilities
• High-grade metal/aluminium housing for mounting on a DIN rail
• Optionally extended temperature range from -40°C to +70°C (standard is from 0°C to + 60°C)
• Cost-effective powering of terminal equipment via PoE+ function. The backplane of the switch supports up to 120 watts and additional media modules with external power supply can even increase the total amount of available PoE power
• Simple configuration and diagnosis using HiDiscovery, HiView, Industrial HiVision or web interface
• Diversity of standards and approvals
• 5-year warranty

ORDERING INFORMATION

Essential Part Number Part Number Article Number Description
MSP40-20-3A MSP40-00200SCY9MRHHE3AXX.X 942 076-013 Modular Full Gigabit DIN Rail Managed I.E Switch with up to 16 x GE TX/SFP ports with 4 x 2.5 GE or 2 x 10 GE SFP ports, 18-60V DC, 0°C to + 60°C, Software HiOS Layer 2 Advanced. Y9: CE/EN/UL60950 Approvals



DOCUMENTS

MSP40-20-3A DATASHEET
