Contact Closure FO-System

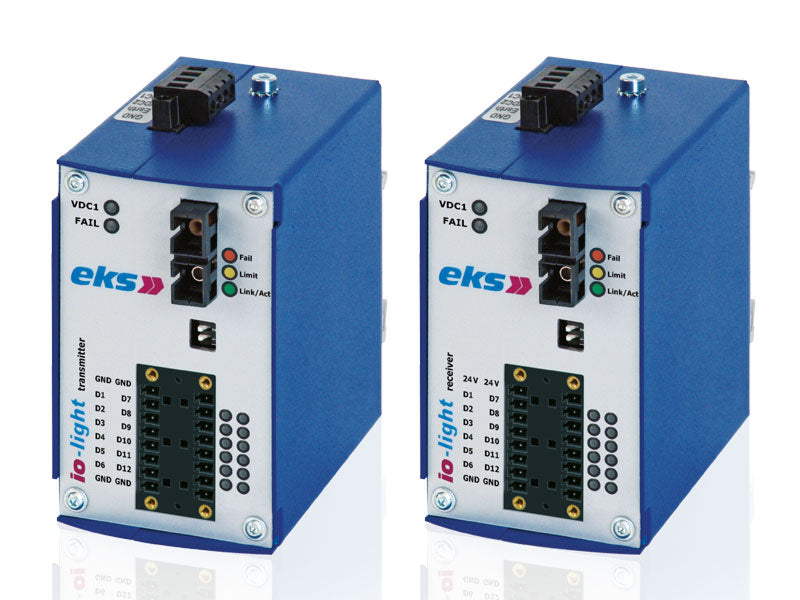

EKS IOL3200 Series is a fiber optic system which transmits digital signals (e.g., contact closures, control-signals) via fiber optics.
Using addressed subscribers, the fiber optic system is able to transmit up to 12 digital signals (12–24 VDC) within a point-to-point structure.
FEATURES
- 12 x Contact Closure
- Point-to-Point-System
- Stainless Steel, Powder Coated
- Top-Hat Rail
ORDERING INFORMATION
| Part Number |
Article Number |
Description |
| IOL-3200/TX-12D-13-MM-SC |
032001323 |
Fiber Transmitter Multi-mode SC with 12 x DI (Digital 12-24VDC) |
| IOL-3200/TX-12D-13-SM-SC-L |
032001333-L |
Fiber Transmitter Single-mode SC with 12 x DI (Digital 12-24VDC) |
| IOL-3200/RX-12D-13-MM-SC |
032002323 |
Fiber Receiver Multi-mode SC with 12 x DI (Digital 12-24VDC) |
| IOL-3200/RX-12D-13-SM-SC-L |
032002333-L |
Fiber Receiver Single-mode SC with 12 x DI (Digital 12-24VDC) |
DOCUMENTS
IOL3200 BROCHURE
