Siemens SCALANCE

IWLAN Antennas and Accessories

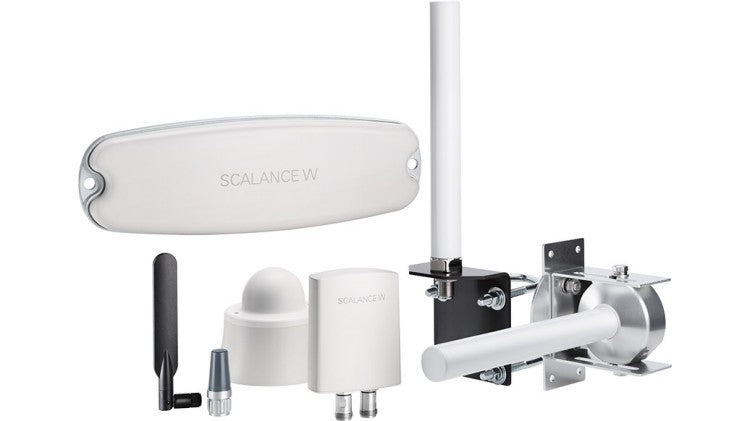

Siemens IWLAN Antennas include omnidirectional antennas for large-area radio coverage in all directions, directional antennas for precisely defined radio field, as well as sector or wide-angle antennas for broad radio coverage.

Siemens W Accessories include cabling technology and mounting accessories, such as lightning protection elements and plug-in connectors

FEATURES

Separate antennas ensure reliable radio connections in the 2.4 GHz or 5 GHz frequency band and a data transmission rate up to 1733 Mbit/s with the SCALANCE W products

Omnidirectional antennas for a large-area radio coverage in all directions
Directional antennas for a directional radio coverage in a defined direction, e.g. for cross-building wireless communication
Sector or wide-angle antennas for a broad radio field, e.g. coverage of courtyards and forecourts
Special antennas for RCoax applications

ORDERING INFORMATION

IWLAN Antennas

Article Number	Description
6GK5792-4DN00-0AA6	ANT792-4DN IWLAN antenna for RCoax systems, 4 dBi Helix antenna, circular polarizing clockwise; incl. N-female connector IP65 (-40-+70°C), 2.4 GHz
6GK5792-6MN00-0AA6	ANT792-6MN IWLAN antenna with omnidirectional characteristic incl. N-female connector: 6 dBi IP67 (-40 - +70 °C); 2.4 GHz; Wi-Fi compliance and national approvals to be observed; mounting on wall or mast, Compact instructions as hard copy German/English, Scope of delivery: 1x ANT792-6MN, 1x terminating resistor TI795-1R
6GK5792-8DN00-0AA6	ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of supply: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment
6GK5793-4MN00-0AA6	ANT793-4MN IWLAN antenna for RCoax systems; Lambda/4 with omnidirectional Characteristic, 6 dBi incl. N-female connector IP65 (-40-+70°C), 5GHz
6GK5793-6DG00-0AA0	ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40 - +80 °C), 5 GHz; Wi-Fi compliance and national approvals to be observed; Mounting on wall or mast; Compact instructions as hard copy English/German; Scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment
6GK5793-8DJ00-0AA0	ANT793-8DJ IWLAN antenna Vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 18 dBi; IP67 (-45 - +70 °C), 5 GHz; Wi-Fi compliance and national approvals to be observed; Mounting on wall or mast; Compact instructions as hard copy English/German; Scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment
6GK5793-8DK00-0AA0	ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70°C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy English/German; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment
6GK5793-8DL00-0AA0	ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 dBi; IP66 (-45-+70°C), 5 GHz; suitable for railway applications; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy English/German; scope of delivery: 1x ANT793-8DL, 1x mounting aid for alignment
6GK5793-8DP00-0AA0	ANT793-8DP IWLAN antenna with strong directional effect incl. N-female connector: 13/13.5 dBi; IP66/67; (-40 - +80 °C); 4.9-5.35 GHz; Wi-Fi compliance and observe national approvals! Mounting on wall or mast; Compact instructions as hard copy English/German; Scope of delivery: 1x ANT793-8DP, 1x mounting aid for alignment
6GK5795-4MA00-0AA3	ANT795-4MA IWLAN antenna with omnidirectional Characteristic, Radially rotatable, with additional joint, incl. RSMA connector: 3/5 dBi, IP30 (-20-+60°C), 2.4/5 GHz; Wi-Fi compliance and Observe national approvals; Direct mounting on SCALANCE W with RSMA connection system; scope of delivery: 1x ANT795-4MA, compact instructions as hard copy German/English
6GK5795-4MB00-0AA0	ANT795-4MB IWLAN antenna with omnidirectional Characteristic, Radially rotatable, with additional joint, incl. RSMA connector: 2/3 dBi, IP65 (-20-+60°C), 2.4/5 GHz; Wi-Fi compliance and Observe national approvals; Direct mounting on SCALANCE W with RSMA connection system; Scope of delivery: 1x ANT795-4MB, compact instructions as hard copy German/English
6GK5795-4MC00-0AA3	ANT795-4MC IWLAN antenna with omnidirectional Characteristic; incl. N-Connect Male connector straight; 3/5 dBi IP65 (-20-+60°C), 2.4/5GHz Wi-Fi compliance and Observe national approvals; Direct mounting on SCALANCE W with N-Connect connection system scope of delivery: 1x ANT795-4MC, compact instructions as hard copy German/English
6GK5795-4MD00-0AA3	ANT795-4MD IWLAN antenna with omnidirectional characteristic; including N-Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5 GHz; Wi-Fi compliance and national approvals to be observed; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English
6GK5795-4MX00-0AA0	ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-Connect male plug straight: 2/2.5 dBi; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE devices with N-Connect connection system; scope of supply: 1x ANT795-4MX, compact instructions as hard copy German/English
6GK5795-6DC00-0AA0	ANT795-6DC IWLAN antenna with weak directional effect; incl. N-female connector: 9 dBi; IP66/67 (-40 - +80 °C), 2.4/5 GHz; Wi-Fi compliance and national approvals to be observed; Mounting on wall or mast Compact instructions as hard copy English/German; Scope of delivery: 1x ANT795-6DC, 1x mounting aid for alignment
6GK5795-6MN01-0AA6	Mounting kit for ANT795-6MN Mounting aid for installation of ANT795-6MN below roof, IP20 (-40-+70 °C), Scope of delivery: 1 mounting aid 1 elbow adapter N-Connect male/female 2 mounting screws Compact instructions as hard copy German/English
6GK5795-6MN10-0AA6	ANT795-6MN antenna with omnidirectional characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of supply: 1x ANT795-6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available
6GK5795-6MP00-0AA0	ANT795-6MP IWLAN antenna with omnidirectional characteristic incl. N-female connector: 5/7 dBi; IP65/67 (-40 - +80 °C); 2.4/5 GHz Wi-Fi compliance and national approvals to be observed; Mounting on wall or mast; compact instructions in German/English Scope of delivery: 1x ANT795-6MP, 1 x mounting aid
6GK5795-6MT00-0AA0	ANT795-6MT IWLAN antenna MIMO antenna with omni- directional characteristic incl. 3x QMA sockets; 5/7 dBi; IP65 (-40-+85 °C), 2.4/5GHz; Wi-Fi compliance and Observe national approvals; mounting on roof, vehicles and ceiling installation; compact instructions as hard copy English/German; scope of delivery: 1x ANT795-6MT, 1x mounting aid for Ceiling mounting

Accessories (IWLAN cabling technology)

Article Number	Description
6GK5795-1TN00-1AA0	N-Connect male termination Impedance TI795-1N 50 ohm; 2.4 and 5 GHz, IP65, 0...6 GHz ;
6GK5795-1TR10-0AA6	R-SMA male termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz; 1 pack=3 units
6GK5798-0AP00-4CA0	N-Connect male/female Attenuator 10 dB
6GK5798-0CP00-1AA0	N-Connect male/male couplers Clutch element
6GK5798-0PT00-2AA0	N-Connect/SMA Female/female Panel feedthrough; cabinet bushing, 2.4 GHz and 5 GHz for Wall thickness max. 5.5 mm
6GK5798-0SN00-0EA0	N-Connect female power splitter 2-fold; 2.4 and 5 GHz Y-element
6GK5798-1CS00-4AA0	R-SMA male/female Elbow adapter
6GK5798-2LP00-2AA6	Lightning protector LP798-1N, Lightning protection element with N/N Female/female connection, IP66/68 (-40 °C...+85 °C), 0...6 GHz, with gas discharge technology for SCALANCE W and M antennas, compact instructions as hard copy German/English
6GK5798-2LP10-2AA6	Lightning protector LP798-2N, Lightning protection element with N/N Female/female connection, IP65 (-40...+85 °C), 2 ... 6 GHz, with Quarter-Wave technology for SCALANCE W antennas, compact instructions as hard copy German/English
6GK5798-2PP00-2AA6	N-Connect Female/female Panel feedthrough, cabinet bushing, 2.4 GHz and 5 GHz for Wall thickness max. 4.5 mm
6XV1875-5AH10	N-Connect male/male flexible connection cable pre-assembled; length 1 m; flexible cable, for example, for the connection to antennas, suitable for IWLAN and mobile radio
6XV1875-5AH20	N-Connect male/male flexible connection cable pre-assembled; length 2 m flexible cable, for example, for the connection to antennas, suitable for IWLAN and mobile radio
6XV1875-5AH50	N-Connect male/male flexible connection cable pre-assembled; length 5 m flexible cable, for example, for the connection to antennas, suitable for IWLAN and mobile radio
6XV1875-5AN10	N-Connect male/male flexible connection cable pre-assembled; length 10 m flexible cable, for example, for the connection to antennas, suitable for IWLAN and mobile radio
6XV1875-5CE30	N-Connect/R-SMA male/ male flexible connection Pre-assembled cable, Length 0.3 m flexible connecting cable Access point antenna (RCoax and others)
6XV1875-5CH10	N-Connect/ R-SMA male/male flexible connection cable pre-assembled, length 1m flexible connecting cable Access point antenna (RCoax and others)
6XV1875-5CH20	N-Connect/ R-SMA male/male flexible connection cable pre-assembled, length 2 m flexible connecting cable Access point antenna (RCoax and others)
6XV1875-5CH50	N-Connect/ R-SMA male/male flexible connection cable pre-assembled, Length 5 m flexible connecting cable Access point antenna (RCoax and others)
6XV1875-5CN10	N-Connect/ R-SMA male/male flexible connection cable pre-assembled, length 10 m flexible connecting cable Access point antenna (RCoax and others)
6XV1875-5DE30	IWLAN R-SMA/ SMA male/male flexible connection cable pre-assembled, length 0.30 m flexible connecting cable for components with R-SMA and SMA connection
6XV1875-5DH20	IWLAN R-SMA/ SMA male/male flexible connection cable pre-assembled, length 2 m flexible connecting cable for components with R-SMA and SMA connection
6XV1875-5JH10	QMA/ N-Connect male/female flexible connection cable pre-assembled, length 1 m; Flexible adapter cable from antenna with QMA socket to antenna connecting cable; scope of delivery: 3 units
6XV1875-5SH10	N-Connect male/male flexible connection cable, harness; length 1 m, for suitable for railway applications; flexible cable, for example, for the connection to antennas, suitable for IWLAN and mobile radio
6XV1875-5SH20	N-Connect male/male flexible connection cable harness; length 2 m, for suitable for railway applications; flexible cable, for example, for the connection to antennas, suitable for IWLAN and mobile radio
6XV1875-5SH50	N-Connect male/male flexible connection cable harness; Length 5 m, for suitable for railway applications; flexible cable, for example, for the connection to antennas, suitable for IWLAN and mobile radio
6XV1875-5TH10	N-Connect/ R-SMA male/male Flexible connection cable pre-assembled, for Suitable for railway applications; flexible connecting cable e.g. for access point antenna Length: 1 m
6XV1875-5TH20	N-Connect/ R-SMA male/male Flexible connection cable pre-assembled, for Suitable for railway applications; flexible connecting cable e.g. for access point antenna Length: 2 m
6XV1875-5TH50	N-Connect/ R-SMA male/male Flexible connection cable pre-assembled, for Suitable for railway applications; flexible connecting cable e.g. for access point antenna Length: 5 m
6XV1875-5VH10	QMA/ N-Connect male/female Flexible connection cable pre-assembled, for Suitable for railway applications; Flexible adapter cable from antenna with QMA socket to antenna connecting cable; Length: 1 m
