MB5201 Series
MB5201 Series

ATOP

MB5201 Series

Request a quote

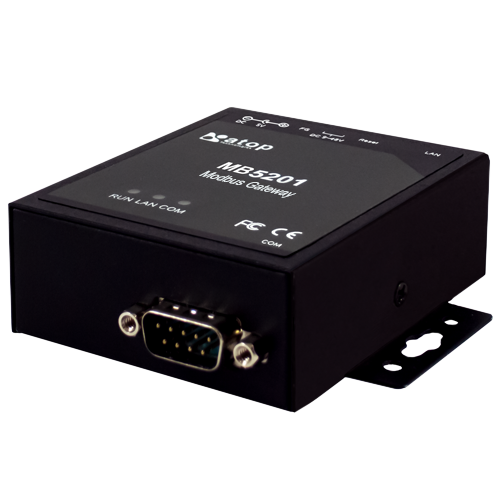

Compact 1-Port Industrial Modbus TCP/RTU/ASCII Gateway, Field-Mount

ATOP MB5201 Series is a Compact 1-Port Industrial Modbus TCP/RTU/ASCII Gateway, Field-Mount with 1 x 10/100Mbps RJ45 Fast Ethernet port

FEATURES

  • 1 x software-selectable RS-232/485/422 port
  • 1 x 10/100Mbps RJ45 Fast Ethernet port
  • Supports TCP server/client, UDP, Virtual COM and Tunnelling modes
  • Modbus TCP/RTU/ASCII
  • Configuration via Web Server page, Telnet Console, and Windows Utility
  • Upgradable firmware via Ethernet from a remote-PC
  • Rugged metal casing; industrial EMC protection
  • Redundant dual DC power inputs for non-stop operation
  • Optional DIN-Rail mounting

ORDERING INFORMATION

Part Number Article Number Description
MB5201-DB 1P1MB520100001G 1-Port Modbus TCP/RTU Gateway, industrial EMC potection, RS-232/422/485, DB9(M)
MB5201-TB 1P1MB520100002G 1-Port Modbus TCP/RTU Gateway, industrial EMC potection, RS-232/422/485, Terminal Block



DOCUMENTS

MB5201 BROCHURE
