Powerful Wireless Router with LTE Advanced

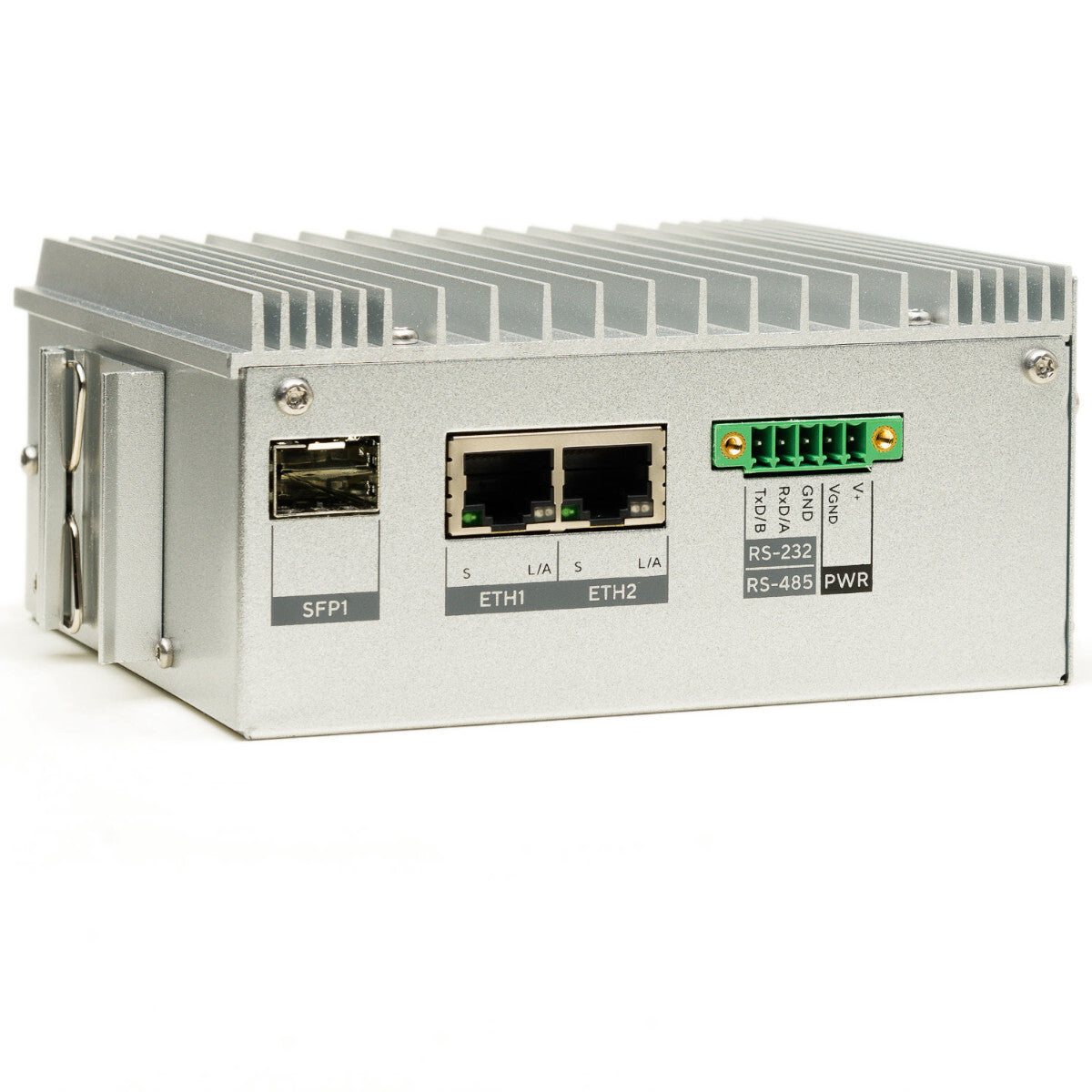

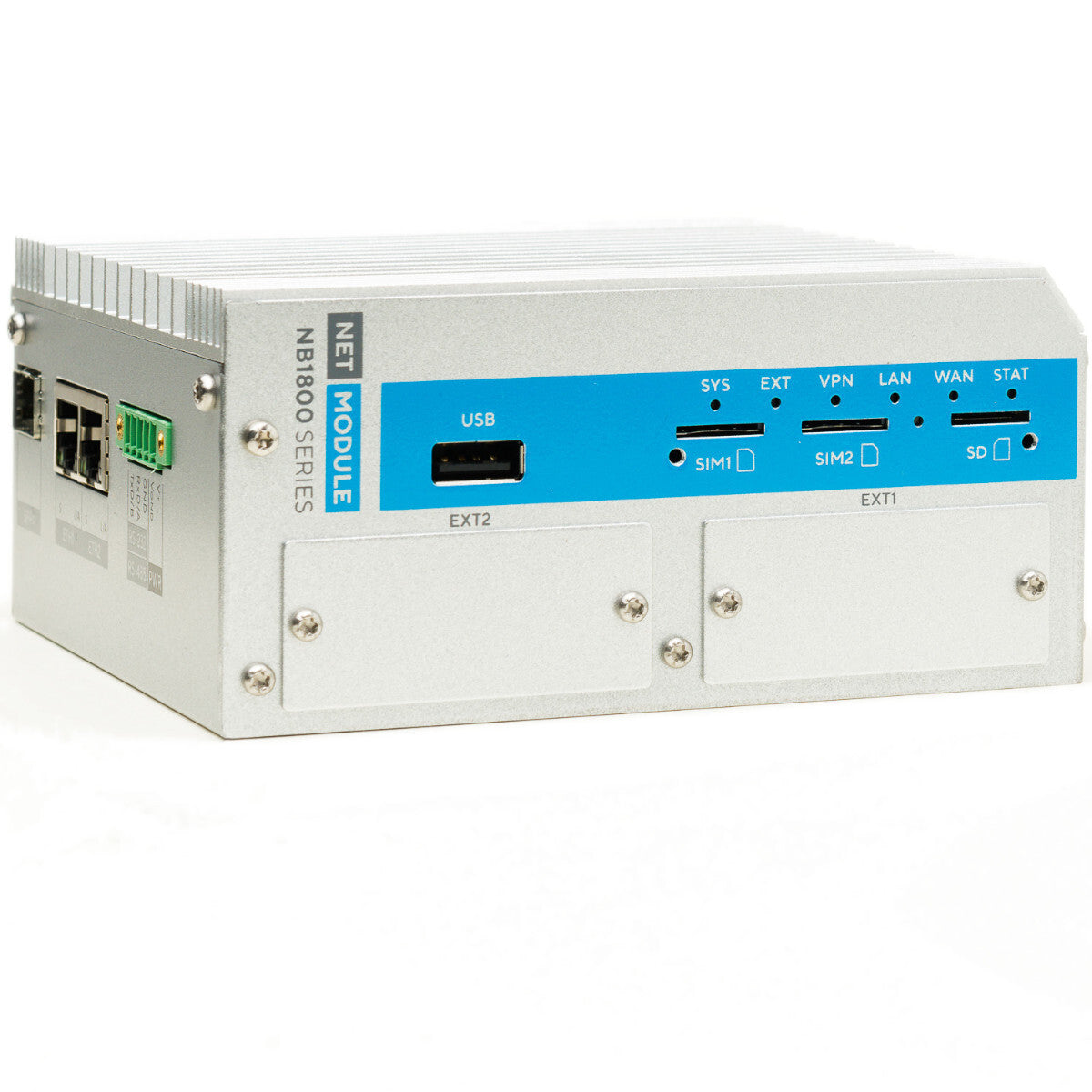

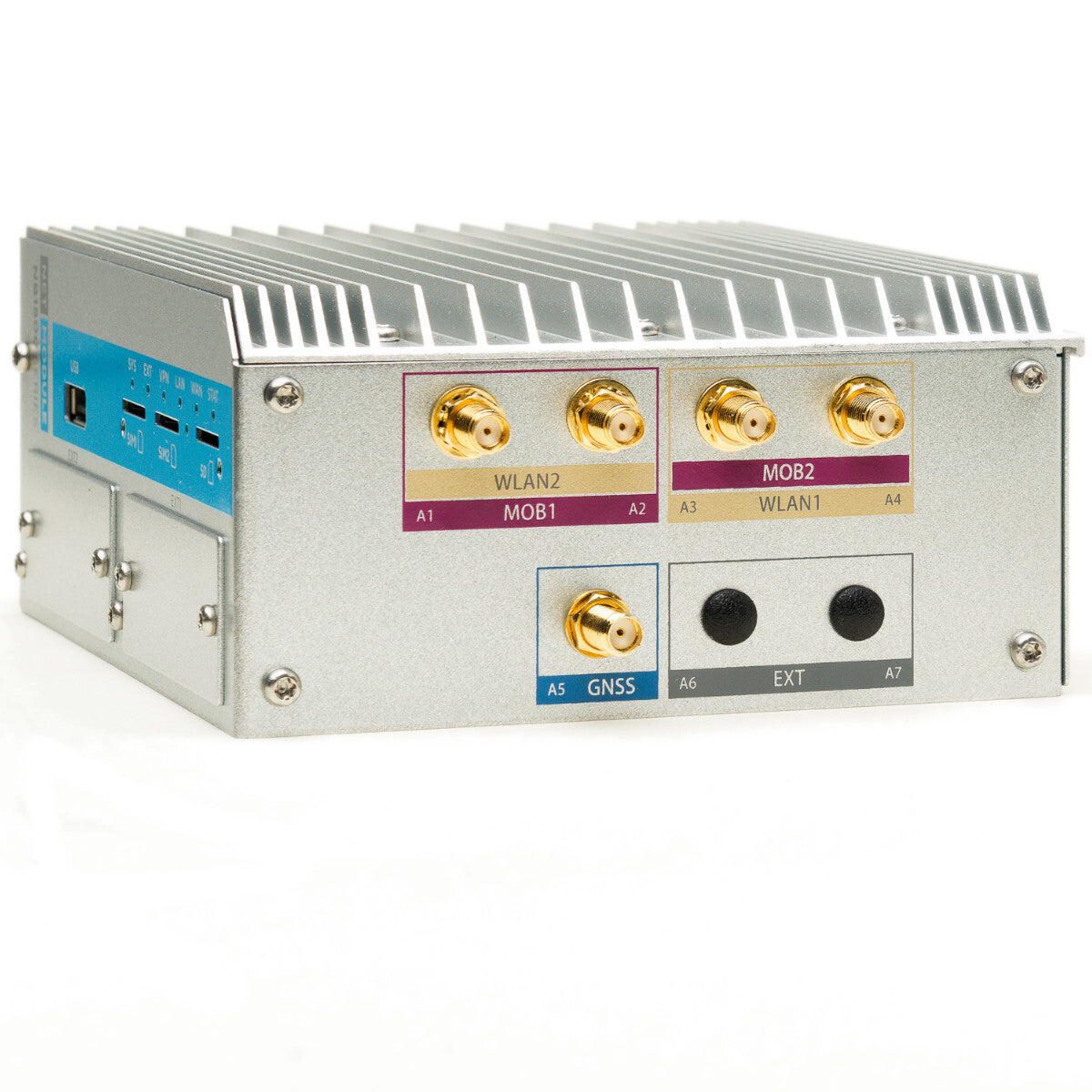

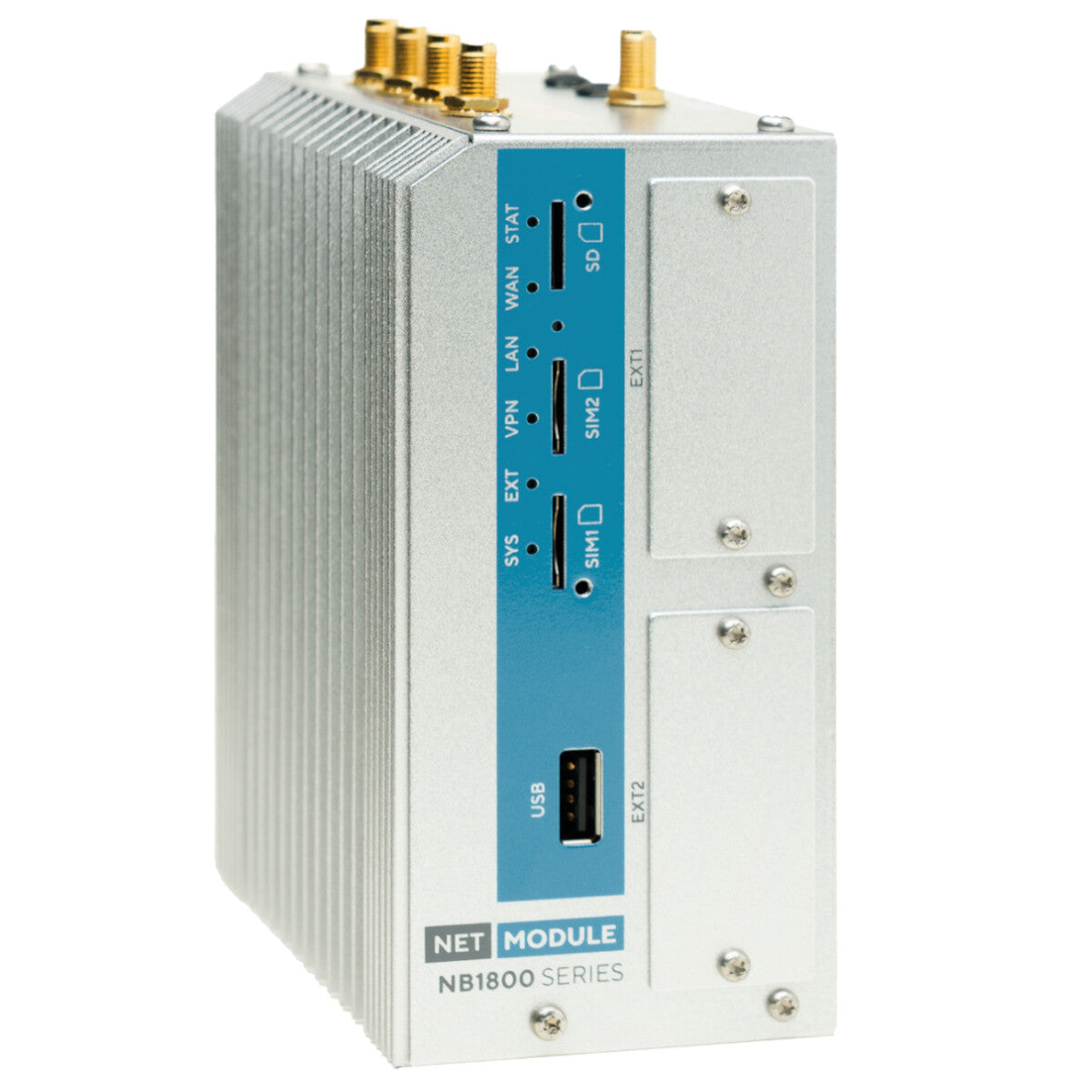

Netmodule NB1800 Series is a NB1800 Series is a Powerful wireless router with LTE Advanced, WLAN, Gigabit Ethernet, fiber-optics, serial interfaces, and GNSS
FEATURES
- 2x LTE Advanced, LTE, UMTS, GSM with 2x micro-SIM
- 1x Dual Band IEEE 802.11a/b/g/n/ac (Wi-Fi 5) and Bluetooth 4.2 in access-point mode
- 2x Gigabit Ethernet, 1x SFP (fiber-optic or other)
- 1x USB 2.0, 1x RS-232/RS-485, 1x SD card slot
- 2x extension modules for additional interfaces
- Multi-GNSS via Beidou, Galileo, GLONASS, GPS
- Software: Routing, network services, VPN, firewall, link management, supervisor, MQTT, device server, SDK, Linux Container (LXC); free updates
- Operating environment: -40 °C/-40 °F to +70 °C/+158 °F, IP40
- Input voltage: 12 VDC to 48 VDC
- Conformity: CE (RED)
ORDERING INFORMATION
| Part Number |
Description |
| NB1800-2Wac |
Industrial Router with 2x WLAN-ac + 2x GbE + SFP |
| NB1800-LgWac-G |
Industrial Router with LTE-APAC + WLAN-ac + 2x GbE + SFP + GNSS |
| NB1800-Lwac |
Industrial Router with LTE + WLAN-ac + 2x GbE + SFP |
| NB1800-Lwac-G |
Industrial Router with LTE + WLAN-ac + 2x GbE + SFP + GNSS |
DOCUMENTS
NB1800 DATASHEET
