PG5908A Series

Request a quote

IEC61850-3 Certified Smart Grid Protocol Gateway

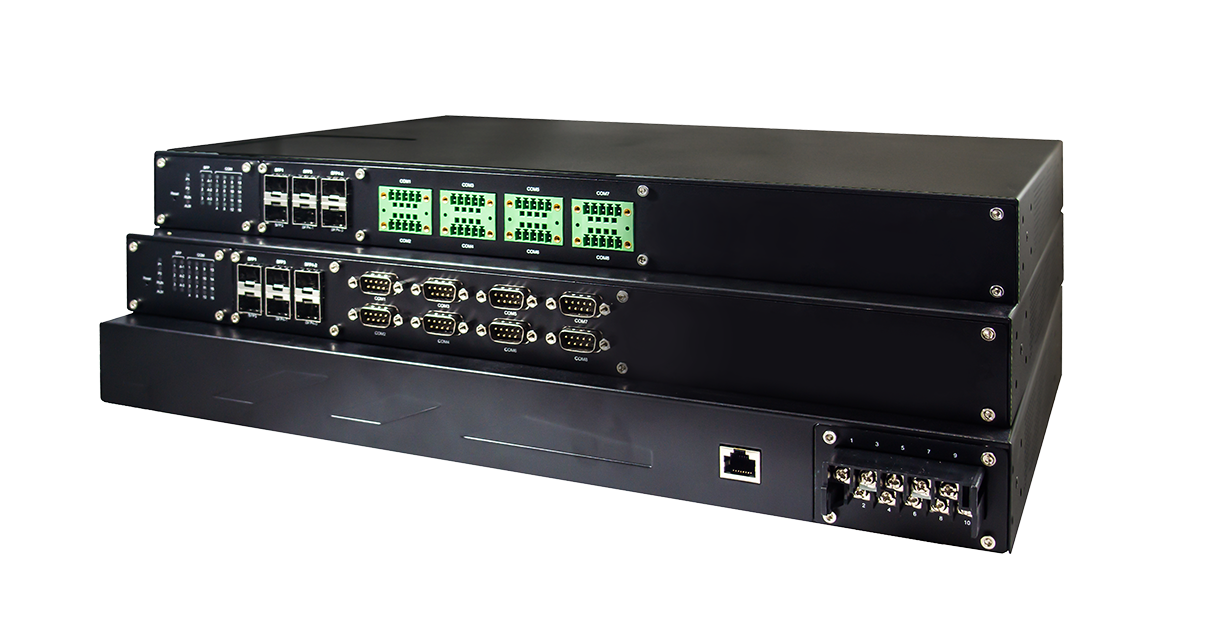

ATOP PG5908A Series is an IEC61850-3 Certified Smart Grid Protocol Gateway with 8-Port RS232/485/422 and 6-Port Fast-Ethernet RJ45 or SFP, DNP3, Modbus, IEC 60870-5-101/103/104, IEC 61850

FEATURES

  • 6 x 10/100Mbps RJ45 or SFP Ethernet ports, Embedded IPsec VPN for enhanced security
  • IEC 61850-3 and IEEE 1613 Power Substation Standards certified
  • 8-port RS-232/422/485, D-Sub9 or TB5 connecter, Optional isolation
  • Isolated redundant power inputs with 24-48 VDC ,100-240 VAC, 100-370 VDC variations, two relay outputs
  • Works in environments from -40 to 85°C
  • Same hardware platform for different protocol conversion (Modbus TCP/RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850)
  • User friendly configuration with a Java-Based Windows utility
  • Embedded PPTP, IPsec and OpenVPN Client/Server for enhanced security

ORDERING INFORMATION

Part Number Article Number Description
PG5908A-6SFP Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, DB9, 24-48 VDC
PG5908A-6SFP-TB Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, TB5, 24-48 VDC
PG5908A-6SFP-Sis Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, Isolation, 24-48 VDC
PG5908A-6SFP-HV Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, DB9, 100-240VAC/ 100-370VDC
PG5908A-6SFP-TB-HV Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, TB5, 100-240VAC/ 100-370VDC
PG5908A-6SFP-Sis-HV Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP, Isolated, 100-240VAC/ 100-370VDC
PG5908A Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, DB9, 24-48 VDC
PG5908A-TB Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, TB5, 24-48 VDC
PG5908A-8P-Sis Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, Isolation, 24-48 VDC
PG5908A-HV Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, DB9, 100-240VAC/ 100-370VDC
PG5908A-TB-HV Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, TB5, 100-240VAC/ 100-370VDC
PG5908A-Sis-HV Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, Isolation, 100-240VAC/100-370VDC



DOCUMENTS

PG5908A BROCHURE
