Industrial VPN System

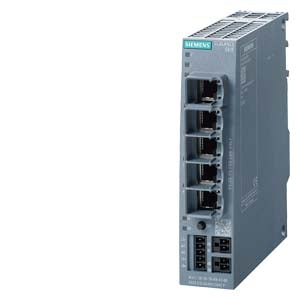

Siemens SCALANCE S615 Series is a Industrial VPN System with 5 x RJ45, 100 Mbit/s and up to 128 firewall rules.
FEATURES
- Cell protection via firewall – also configurable on a user-specific basis – with 100 Mbit/s and up to 128 firewall rules
- Administration of up to 20 VPN connections with a data rate of up to 35 Mbit/s
- NAT/NAPT for communicating with serial machines with identical IP addresses
- Secured remote access via SINEMA Remote Connect
- Digital input for local activation of secured remote access
- Digital signal output
- Redundant 24 V DC power supply
- Versatile installation options for fast and reliable mounting with mounting frame, also for installation in 19” racks
- Narrow design, light plastic housing
- Simple device replacement using C-PLUG replacement medium for automatically saving configuration and engineering data
- Integration into redundant network structures by means of VRRPv3
ORDERING INFORMATION
| Article Number |
Description |
| 6GK5615-0AA00-2AA2 |
SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output |
DOCUMENTS
SCALANCE S615 BROCHURE
