DIN Rail Protocol Convertors

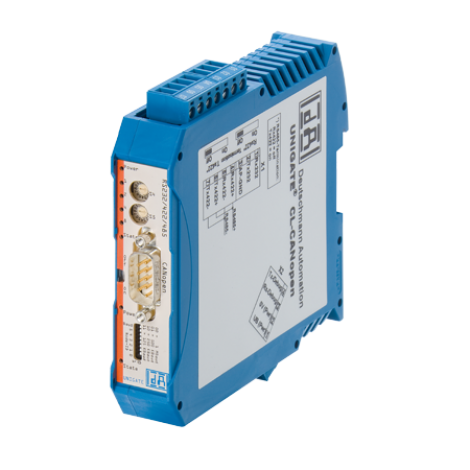

Deutschmann UNIGATE CL range of DIN-Rail Protocol convertors for connecting legacy RS232/422/485 devices to modern Fieldbus networks such as Profibus DP, CANopen, ProfiNET, Modbus/TCP and Ethernet/IP

Customised protocol conversion is possible using the Script function and the WINGATE® configuration tool.

ORDERING INFORMATION

Part Number Article Number Description
UNIGATE CL-BI V3910 RS232/422/485 to BACnet Serial Gateway
UNIGATE CL-C4 V3554 RS232/422/485 to CANopen Serial Gateway
UNIGATE CL-DN V3555 RS232/422/485 to DeviceNet Serial Gateway
UNIGATE CL-EC V3573 RS232/422/485 to EtherCAT Serial Gateway
UNIGATE CL-EI 2Port V3819 RS232/422/485 to Ethernet/IP 2Port Serial Gateway
UNIGATE CL-FE V3611 RS232/422/485 to Fast Ethernet (TCP/IP) Serial Gateway
UNIGATE CL-GT-CANopen4 V3708 RS232/422/485 to CANopen V4 Serial Gateway. With galvanic isolation on RS-side.
UNIGATE CL-GT-EI-2Port V3861 RS232/422/485 to EtherNetIP 2Port Serial Gateway. Additional galvanic separation RS-side   (RS-Interface)
UNIGATE CL-GT-PBDPV1 V3649 RS232/422/485 to PROFIBUS Serial Gateway. Additional galvanic separation RS-side   (RS-Interface)
UNIGATE CL-LONWorks62 V3623 RS232/422/485 to LONWorks62 Serial Gateway
UNIGATE CL-ModbusTCP V3681 RS232/422/485 to ModbusTCP Serial Gateway
UNIGATE CL-MPI V3556 RS232/422/485 to MPI Serial Gateway
UNIGATE CL-PBDPV1 V3553 RS232/422/485 to Profibus DP V1 Serial Gateway
UNIGATE CL-PN V3818 RS232/422/485 to Profinet 2 port Serial Gateway
UNIGATE CL-RS V3546 RS232/422/485 to Generic Serial Interface Gateway



DOCUMENTS

UNIGATE CL Brochure
