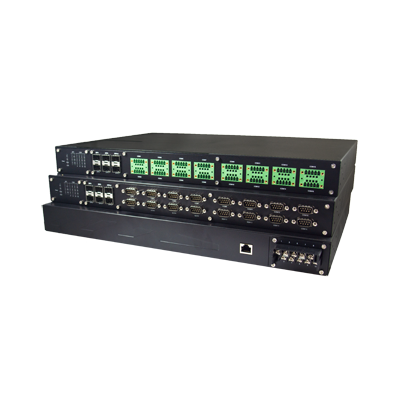

PG5916A Series
IEC61850-3 Certified Smart Grid Protocol Gateway
ATOP PG5916A Series is a IEC61850-3 Certified Smart Grid Protocol Gateway with 16-Port RS232/485/422 and 6-Port Fast-Ethernet RJ45 or SFP, DNP3, Modbus, IEC 60870-5-101/103/104, IEC 61850
FEATURES
- 6 x 10/100Mbps RJ45 or SFP Ethernet ports, Embedded IPsec VPN for enhanced security
- IEC 61850-3 and IEEE 1613 Power Substation Standards certified
- 16-port RS-232/422/485, D-Sub9 or TB5 connecter, Optional isolation
- Isolated redundant power inputs with 24-48 VDC ,100-240 VAC, 100-370 VDC variations, two relay outputs
- Works in environments from -40 to 85°C
- Same hardware platform for different protocol conversion (Modbus TCP/RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850)
- User friendly configuration with a Java-Based Windows utility
- Embedded PPTP, IPsec and OpenVPN Client/Server for enhanced security
ORDERING INFORMATION
| Part Number | Article Number | Description |
|---|---|---|
| PG5916A-6SFP | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, DB9, 24-48 VDC | |
| PG5916A-6SFP-TB | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, TB5, 24-48 VDC | |
| PG5916A-6SFP-Sis | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, Isolation, 24-48 VDC | |
| PG5916A-6SFP-HV | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) SFP, DB9, 100-240VAC/100-370VDC | |
| PG5916A-6SFP-TB-HV | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, TB5, 100-240VAC/100-370VDC | |
| PG5916A-6SFP-Sis-HV | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) SFP, Isolated, 100-240VAC/100-370VDC | |
| PG5916A | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) RJ45, DB9, 24-48 VDC | |
| PG5916A-TB | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) RJ45, TB5, 24-48 VDC | |
| PG5916A-Sis | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) RJ45, Isolation, 24-48 VDC | |
| PG5916A-HV | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) RJ45, DB9, 100-240VAC/ 100-370VDC | |
| PG 5916A-TB-HV | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) RJ45, TB5, 100-240VAC/ 100-370VDC | |
| PG 5916A-Sis-HV | Ind. 16 Port Protocol Gateway, 10/100BASE-T(X) RJ45, Isolated,100-240VAC/100-370VDC |
