ATOP
SE5916A Series
16-Port IEC61850-3 Certified Industrial Rack-Mounted Secure Serial Device Server

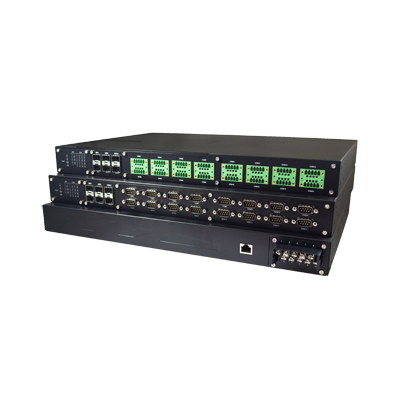

ATOP SE5916A Series is a 16-Port IEC61850-3 Certified Industrial Rack-Mounted Secure Serial Device Server with 16 x Serial ports and 6 x Ethernet ports
FEATURES
- Remotely monitor, manage, and control industrial field devices
- IEC61850-3 certified, can be easily set up into IEC61850-3 substations
- Industrial EMC protection, wide temperature operation, -40°C~85°C
- Redundant Power Input for fault protection, either 24~48 VDC or High-
- Voltage AC/DC (100~240VAC or 100~370VDC)
- 6 Fast-Ethernet interfaces, either RJ45 or SFP slot
- 16 RS-232/RS-485/RS-422 Serial ports, with or without isolation
- TCP Server/Client, UDP, Virtual COM and Tunnelling modes supported
- Embedded security with OpenVPN, PPTP and IPsec VPN support
- Configuration via Web Browser / Telnet/ Windows Utility
ORDERING INFORMATION
| Part Number | Article Number | Description |
|---|---|---|
| SE5916A-6SFP | 1P1SE5916A0001G | Ind. 16 Port Serial Server, 100BASE-FX SFP slot, DB9,24~48 VDC, 6 (SFP), 16 (DB9) |
| SE5916A-6SFP-TB | 1P1SE5916A0002G | Ind. 16 Port Serial Server, 100BASE-FX SFP slot, TB5, 6 (SFP), 16 (TB5) |
| SE5916A-6SFP-Sis | 1P1SE5916A0003G | Ind. 16 Port Serial Server, 100BASE-FX SFP slot, Isolated, 6 (SFP), 16 (TB5) |
| SE5916A-6SFP-HV | 1P1SE5916A0004G | Ind. 16 Port Serial Server, 100BASE-FX SFP slot, DB9, 6 (SFP), 16 (DB9) |
| SE5916A-6SFP-TB-HV | 1P1SE5916A0005G | Ind. 16 Port Serial Server, 100BASE-FX SFP slot, TB5 |
| SE5916A-6SFP-Sis-HV | 1P1SE5916A0006G | Ind. 16 Port Serial Server, 100BASE-FX SFP slot, Isolated |
| SE5916A | 1P1SE5916A0008G | Ind. 16 Port Serial Server, 10/100BASE-T(X) RJ45, DB9 |
| SE5916A-TB | 1P1SE5916A0009G | Ind. 16 Port Serial Server, 10/100BASE-T(X) RJ45, TB5 |
| SE5916A-Sis | 1P1SE5916A000AG | Ind. 16 Port Serial Server, 10/100BASE-T(X) RJ45, Isolated |
| SE5916A-HV | 1P1SE5916A000BG | Ind. 16 Port Serial Server, 10/100BASE-T(X) RJ45, DB9 |
| SE5916A-TB-HV | 1P1SE5916A000CG | Ind. 16 Port Serial Server, 10/100BASE-T(X) RJ45, TB5 |
| SE5916A-Sis-HV | 1P1SE5916A000DG | Ind. 16 Port Serial Server, 10/100BASE-T(X) RJ45, Isolated |
