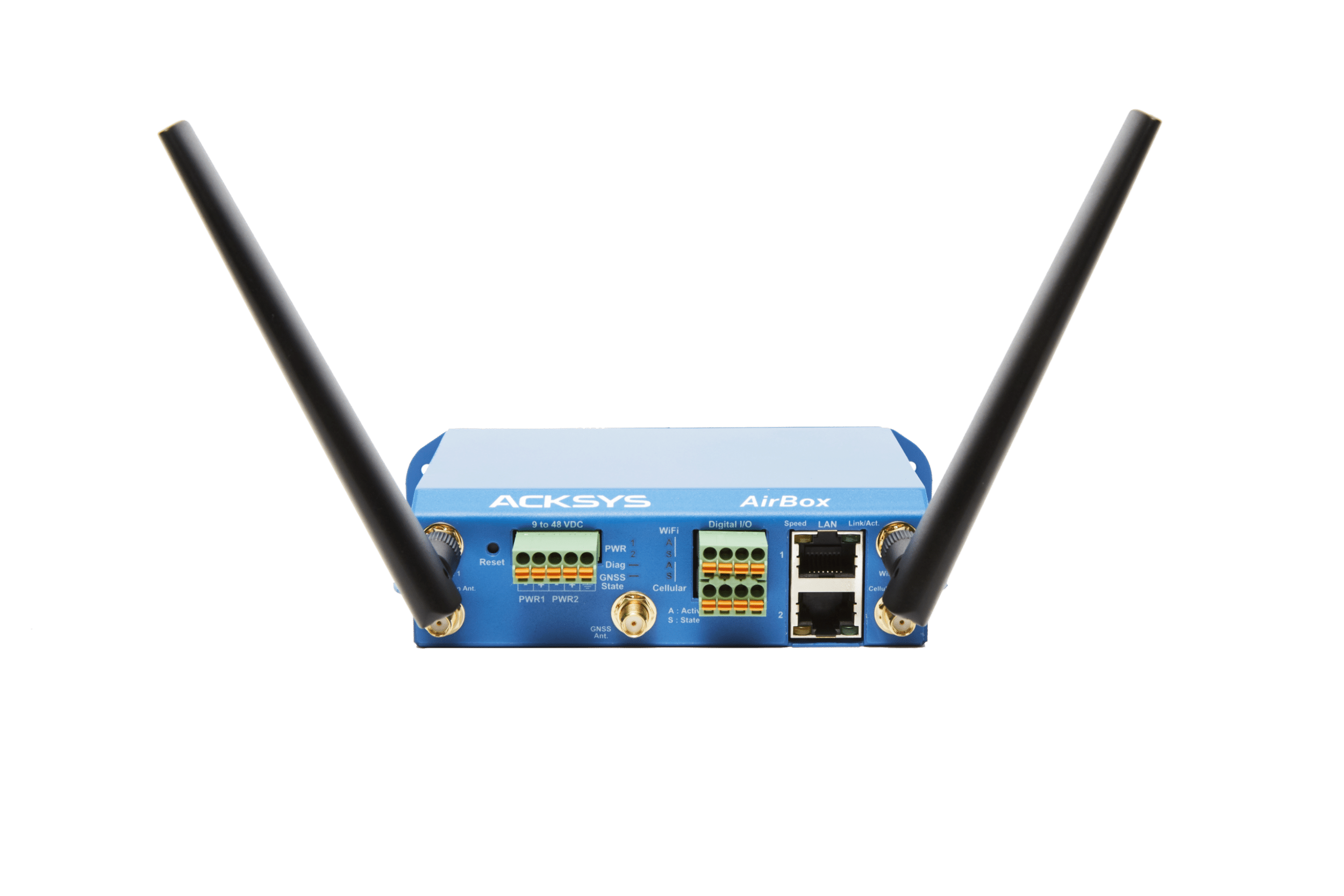

AirBox LTE is a cellular router (2G/3G/4G LTE) equipped with a dual-band WiFi interface (2.4 / 5 GHz), a GNSS interface (GPS, Galileo, GLONASS, Beidou), 2 Gigabit Ethernet ports and 2 isolated inputs/2 isolated outputs. It is designed for industrial applications (industry 4.0) and mobility (buses, vehicles …).
Ideal applications: M2M & IIOT, Mobility (Buses, Vehicles...)
FEATURES
- 2G/3G/4G cellular router with auto-fallback
- E-mark certified (E2 – ECE R10)
- ITS application-ready (LTE band 38 support)
- 802.11n WiFi interface (MIMO 2T2R), 2.4/5 GHz
- Advanced security (VPN, Firewall, radius …)
- Automatic Cellular <> WiFi switching
- WiFi fast roaming (< 30ms)
- Shocks & vibrations proof (EN61373)
- Redundant wide range power supply input (+9 to +48 VDC) & PoE 802.3af (from model V2)
- Compact case, wall or DIN Rail mounting
- 2 isolated inputs + 2 isolated output
ORDERING INFORMATION
| Part Number |
Description |
| AirBox/14 |
WiFi access point, client, repeater (WDS) & MESH point (802.11n) + LTE/GPS router (EMEA, Korea, Thailand, India), RJ45 Ethernet interface 10/100/1000 (Other frequencies → consult us), shipped with two 2.4GHz - 3 dBi / 5GHz - 4 dBi antennas & two cellular antennas
|
|
|
DOCUMENTS
AirBox Datasheet
