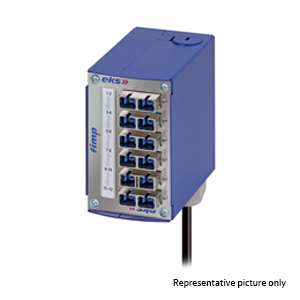

0600002126-01 - EKS FIMP DIN-Rail 12 way fibre patch panel w/ 6 x ST Duplex MM Fibre Connectors (No Pig-tails)
EKS FIMP-6ST-D-MM is a 6-port fiber patch panel with 6 x ST Duplex connectors for up to 12 cores of E9/125um Multimode fiber [With SC Duplex internal couplings]
PRODUCT FEATURES
• Weight 450 g
• Dimensions Height: 115 mm; Width: 61 mm; Depth: 113 mm
• Operating Temperature –40 °C – +75 °C
• Humidity 10 % – 95 % relative, non-condensing
• Housing Stainless steel, powder coated
ORDERING INFORMATION
| Part Number |
Article Number |
Description |
| FIMP-6ST-D-MM |
0600002126-01 |
6 x ST Duplex connectors for up to 12 cores of E9/125um Multimode fiber [With SC Duplex internal couplings] |
DOCUMENTS
FIMP-6ST-D-MM DATASHEET
