8-Port EN 50155 Certified Railway IP67 waterproof Managed Gigabit PoE Switch

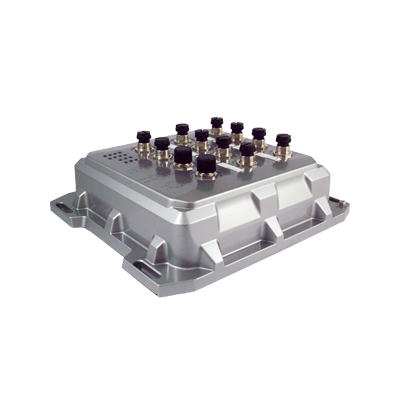

ATOP EMG8508 Series is an 8-Port EN 50155 Certified Railway IP67 waterproof Managed Gigabit PoE Switch with 8 x 10/100/1000 BASE-T(X) ports, M12 connector

FEATURES

  • 8 x 10/100/1000 BASE-T(X) ports, M12 connector
  • Up to 8 x 802.3af or 802.3at compliant PoE ports providing maximum 240W PoE power budget
  • EN50155, EN50121-4, IEC60571 and UL 61010-2-201 certified
  • Redundant power input, DC or High Voltage DC
  • Ruggedized IP67 aluminum enclosure
  • Works from -40°C~75°C
  • 2x Relay outputs, 5-pin M12 A-Coding
  • Profinet Conformance Class B compatible
  • Security features based on IEC62443-4-2

ORDERING INFORMATION

Part Number Article Number Description
EMG8508 1P1EMG85080001G 8-port Managed switch with 8 x M12
EMG8508-4PoE 1P1EMG85080002G 8-port Managed PoE switch with 8 x M12, 4 x PoE
EMG8508-4PoE 1P1EMG85080002G 8-port Managed PoE switch with 8 x M12, 8 x PoE
EMG8508-HV 1P1EMG85080004G 8-port Managed switch with 8 x M12



DOCUMENTS

EMG8508 BROCHURE
