MM3-2FXM2/2TX1

943761101 - Media module for MICE Switches

Hirschmann MS20/MS30 and MM2/MM3/MM4 Series products are now obsolete. There is not a direct replacement offered but we recommend Hirschmann MSP30/MSP40 Series with MSM20/30/40/50 modules as the most suitable alternative product

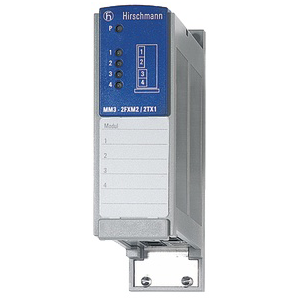

Hirschmann MM3-2FXM2/2TX1 is an 100BASE-TX and 100BASE-FX multi-mode media module for MICE Switches with 2 x 100BASE-FX, MM cables, SC sockets, 2 x 10/100BASE-TX, TP cables, RJ45 sockets

PRODUCT FEATURES

• Media module for MICE Switches MS20, MS30 and MS4128
• 2 x 100Base-FX Multi Mode ports with SC connectors
• 2 x 10/100Base-TX ports with RJ45 sockets, TP cable, auto-crossing, auto-negotiation, auto-polarity
• Multi Mode fiber (MM) 50/125 μm: 0-5000 m, 8 dB link budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 800 MHz x km
• Multi Mode fiber (MM) 62.5/125 μm: 0-4000 m, 11 dB Link budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 500 MHz x km
• Power requirements: Power supply via the backplane of the MICE switch
• Operating Temperature range: 0°C to +60°C
• Protection class: IP 20>

ORDERING INFORMATION

DOCUMENTS

MM3-2FXM2/2TX1 DATASHEET
