Contact Closure FO-System

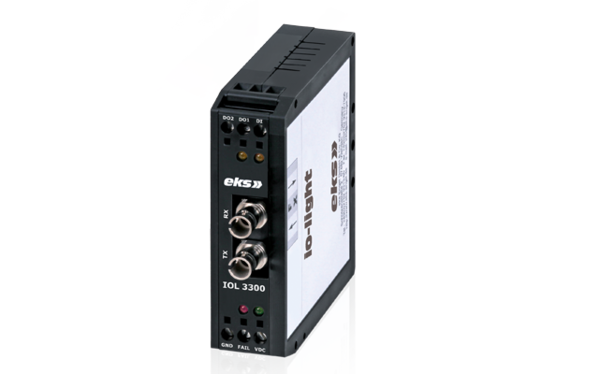

EKS IOL3300 Series is a fiber optic system which transmits digital signals (e.g., contact closures, control-signals) via fiber optics.
The fiber optic cable is able to transmit one digital signal (12–24 VDC) in both directions via one or two fiber.
FEATURES
- 1 x Contact Closure bi-directional
- Point-to-Point-System
- Polyamide, Black
- Top-Hat Rail
ORDERING INFORMATION
| Part Number |
Article Number |
Description |
| IOL-3300/TRX-1D-13-MM-SC |
033002323IR |
Fiber Transceiver Multi-mode SC with 1 x DI/1 x DO Bi-directional |
| IOL-3300/TRX-1D-13-SM-SC |
033002333IR-L |
Fiber Transceiver Single-mode SC with 1 x DI/1 x DO Bi-directional |
DOCUMENTS
IOL3300 BROCHURE
