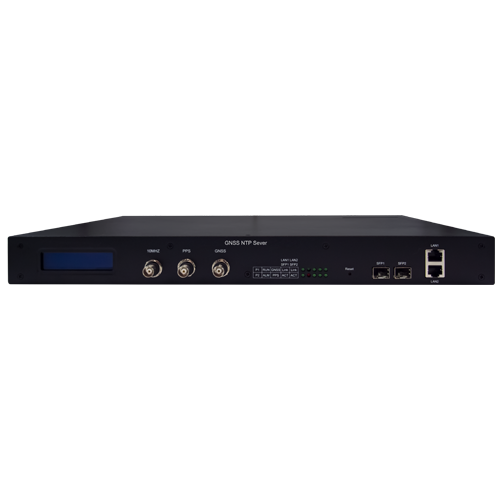

NTS7500-PTP - Power-Grade Industrial Grandmaster Clock

ATOP NTS7500-PTP is a Power-Grade Industrial Grandmaster Clock with 2 x 10/100/1000 Mbps RJ45 and 2 x 100/1000 Mbps Combo SFP slots

FEATURES

  • High precision GNSS module
  • Stratum 1 NTP Server, with Optional PTP hardware-support
  • PTP Version supports IEEE61850-9-3 and IEEEC37.238 Power Profiles
  • Holdover <30 ns/second time-drift when disconnected from GNSS
  • IEC62439-3 Clause 5 Parallel Redundancy Protocol (PRP)
  • Industrial fanless design for -40~85°C operation; IEC61850-3 protection
  • Flexible modular configuration; 2 dedicated Output Module slots
  • 2 x 10/100/1000 Mbps RJ45 and 2 x 100/1000 Mbps Combo SFP slots
  • Embedded NTP/SNTP client and NTP server
  • Support for Legacy Protocols: IRIG-B, BJT, BCD, ST, ST with checksum
  • Redundant power input; low-Voltage DC or high-Voltage AC/D

ORDERING INFORMATION

Part Number Article Number Description
NTS7500-CPU-PTP 1P1NTS75000001G IEEE1588v2 PTP Grandmaster and NTP Server core
NTS7X00 SERIAL MODULE 1P1NTS7X000001G IRIG-B and Serial Output module for NTS7500 - 16-pin Terminal Block
NTS7X00-AC POWER MODULE 1P1NTS7X000002G T;110~240 VAC;120-240 VDC,0.2A;G
NTS7X00-DC POWER MODULE 1P1NTS7X000003G T;24-60 VDC;0.8A Max;G



DOCUMENTS

NTS7500-PTP BROCHURE
