ATOP

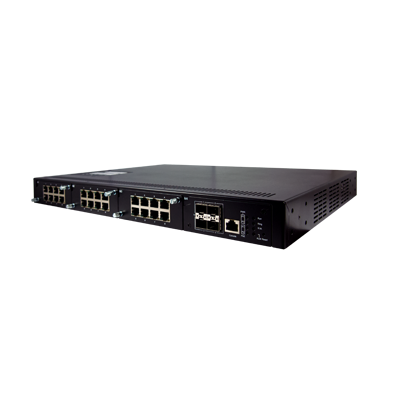

RHG7628 Series
Industrial Rack-Mount Modular Layer-3 Gigabit Ethernet PoE Switch
ATOP RHG7628 Series is a Industrial Rack-Mount Modular Layer-3 Gigabit Ethernet PoE Switch with up to 24 x Gigabit ports and 4 x 10 Gigabit SFP uplink slots, supports MACsec
FEATURES
- Maximum 128Gbps switching capacity, 95.24Mpps throughput
- Flexible modular configuration, 3 Module-dedicated slots
- Up to 24 PoE ports, with maximum 720W of PoE power budget
- 4 x 1 Gigabit or 4 x 10 Gigabit SFP Uplink slots
- RIPv1/v2, OSPFv2, IPv4 Static Routing, and Multicast IP routing
- ITU-T G.8032 ERPS Ring, RSTP, MRP (client) and VRRP redundancy
- Dedicated MACsec modules available for additional ultra-low-latency, high-throughput strong security
- Advanced management features
- Up to 20 possible configurations in 4 power input versions
- Rugged industrial design for -40~75° C harsh environment operation
- PROFINET v2.33 CC-B conformance
- EN50155 and EN50121-4 certified for Railway and Trackside applications
ORDERING INFORMATION
| Part Number | Article Number | Description |
|---|---|---|
| RHG7X28-M1 | 1P1RHG7X28M101G | 8 x RJ45 PoE |
| RHG7X28-M2 | 1P1RHG7X28M201G | 8 x RJ45 |
| RHG7X28-M3 | 1P1RHG7X28M301G | 8 x SFP |
| RHG7X28-M4 | 1P1RHG7X28M401G | 4 x RJ45 MACSEC |
| RHG7X28-M5 | 1P1RHG7X28M401G | 4 x SFP MACSEC |
