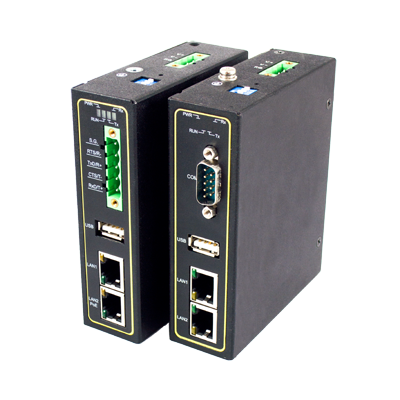

SE5901 Series

1-Port Industrial Secure Wide-Temperature Serial Device Server

ATOP SE5901 Series is a 1-Port Industrial Secure Wide-Temperature Serial Device Server with 1 x Serial port and 2 x Ethernet ports

FEATURES

• Industrial EMC protection, wide temperature operation, -40°C~85°C
• 2-port 10/100Mbps BASE-T(X) Fast Ethernet ports,
• 1-port RS-232/RS-485/RS-422 Software-selectable Serial
• TCP Server/Client, UDP, Virtual COM and Tunneling modes supported
• Embedded security with OpenVPN client/server, PPTP, and IPsec VPN
• Remotely monitor, manage, and control industrial field devices
• Optional 802.3af PoE models can be powered through the Ethernet cable
• Configuration via Web Browser/ Telnet/ Windows Utility
• Remote firmware upgrade
• Rugged metal case with wall or DIN-Rail mount

ORDERING INFORMATION

DOCUMENTS

SE5901 BROCHURE
