Industrial Cellular Router (2G/3G/4G) + WiFi (802.11n)

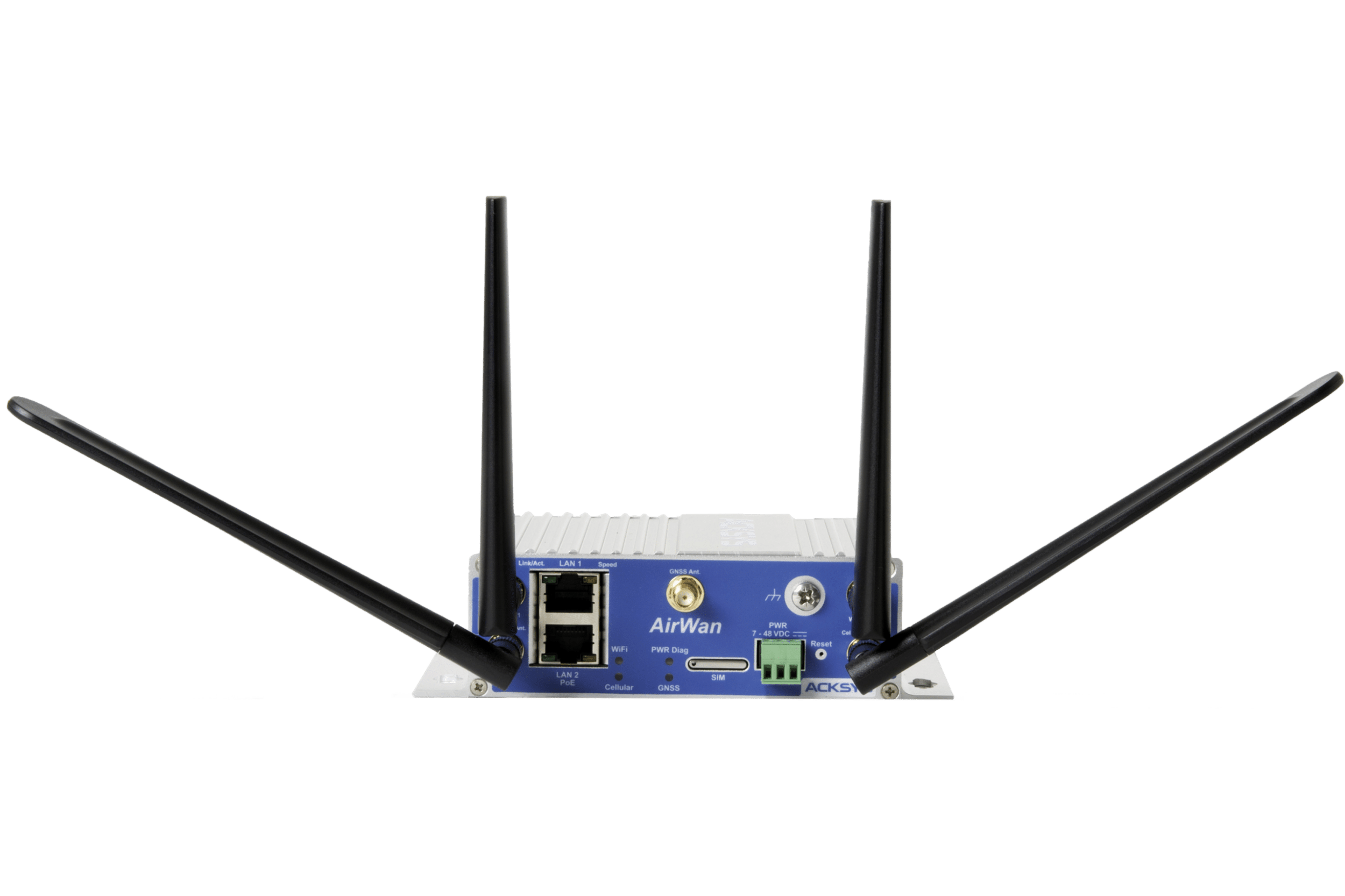

AirWan is a robust cellular router supporting 2G, 3G, and 4G LTE, featuring a dual-band WiFi interface (2.4GHz / 5GHz), GNSS support (GPS, Galileo, GLONASS, Beidou), and equipped with 1 Gigabit Ethernet port and 1 Fast Ethernet port. Specifically engineered for industrial applications (Industry 4.0) and mobility solutions (buses, vehicles, etc.), AirWan ensures reliable connectivity in demanding environments.

FEATURES

  • 2G/3G/4G cellular router with auto-fallback
  • E-mark certified (E2 – ECE R10)
  • WiFi access point, client or repeater modes
  • Mesh function to wirelessly interconnect APs
  • Advanced security (VPN, Firewall, radius …)
  • Automatic Cellular <> WiFi switching
  • High availability : 2 Ethernet ports, wide range power supply input (+7 to +48 VDC), PoE+
  • Compact case, wall or DIN Rail mounting
  • Centralized administration and configurations Management


ORDERING INFORMATION

Part Number Description
AirWan/17 WiFi router (802.11n)+ 4G/LTE (world) + multi-constellation GNSS interface, 1-port Giga and 1-port Fast Ethernet, shipped with 2 WiFi antennas (WL-ANT- 2458 / 3- ORPS) and 2 cellular antennas (ANT727 /20SM)


DOCUMENTS

AirWan Datasheet
