Hirschmann

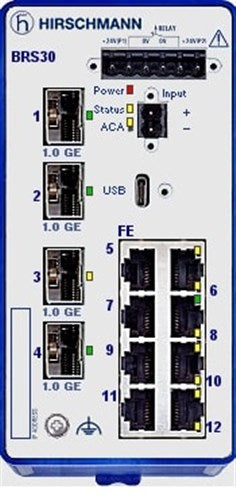

BRS30 Series
Request a quoteManaged Fast Ethernet Switches
Hirschmann BRS30 series of Fast Ethernet switches with Gigabit Uplink SFP port options.
FEATURES
- Advanced Security Features : Including wire-speed access control lists and automatic denial-of-service prevention
- High Port Density: Up to 24 ports within a compact housing to connect a growing number of network devices with SFP or copper uplink port options available.
- TSN support for Precise and Data Transmission: Simultaneously support multiple services on the network through TSN technology
- PoE Capability : Support up to 240 W across 8 PoE/PoE+ ports without load sharing to ensure high power output
- Future-Proof Design: Increased bandwidth and speed capabilities up to 2.5 Gigabits through adjustable SFPs without changing the appliance
- Standard range part numbers offers HIOS Layer 2 standard software. HIOS Layer 2 Advanced software also available
- Available in Extended Operating Temperature and Conformal Coated versions for more arduous operating environments
- Available with additional Industry sector approvals such as cUL 61010-2-201,ATEX, IECEx T, DNVGL, IEC 61850-3
- For all non-standard requirements please see the Configurator Tool for details and part numbers
ORDERING INFORMATION
| Part Number | Article Number | Description |
|---|---|---|
| BRS30-8TX/4SFP | 942 170-007 | 12 Ports in total: 8x 10/100BASE TX / RJ45; 4x SFP Slot (100/1000 Mbit/s) |
|
BRS30-8TX/4SFP-EEC |
942 170-017 | 12 Ports in total: 8x 10/100BASE TX / RJ45; 4x SFP Slot (100/1000 Mbit/s) |
|
BRS30-12TX |
942 170-075 |
12-port Managed DIN Rail switch, 8x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45 |
|
BRS30-12TX-EEC |
942 170-076 |
12-port Managed DIN Rail switch, 8x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45 ports |
| BRS30-16TX/4SFP | 942 170-059 | 20-port FE/GE Managed Switch with 16TX + 4GE SFP ports |
| BRS30-16TX/4SFP-EEC | 942 170-060 | 20-port FE/GE Managed Switch with 16TX + 4GE SFP ports |
|
BRS30-20TX |
942 170-085 |
20-port Managed DIN Rail switch, 16x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45 ports |
|
BRS30-20TX-EEC |
942 170-086 |
20-port Managed DIN Rail switch, 16x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45 ports |
| BRS30-20TX/4SFP | 942 170-061 | BRS30-20TX/4SFP is a 24-port FE/GE Managed Switch with 20TX + 4GE SFP ports |
| BRS30-20TX/4SFP-EEC | 942 170-062 | Hirschmann BRS30-20TX/4SFP EEC is a 24-port FE/GE Managed Switch with 20TX + 4GE SFP ports |
|
BRS30-24TX |
942 170-087 |
24-port Managed DIN Rail switch, 20x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45 ports |
|
BRS30-24TX-EEC |
942 170-088 |
24-port Managed DIN Rail switch, 20x 10/100BASE TX / RJ45; 4x 10/100/1000BASE TX / RJ45 ports |
