CL1314R Series

Request a quote

Industrial Grade, Long Range Ethernet Extender

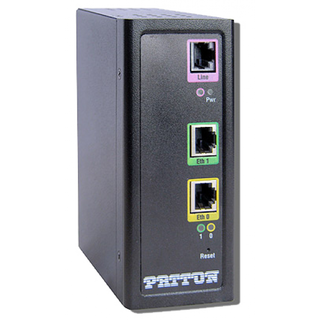

Patton CL1314R Series is a Industrial Grade, Long Range Ethernet Extender with up to 2 Ethernet ports

FEATURES

  • High Speed Extension
  • Multi-rate Selection
  • Ethernet over 2 or 4 wires
  • Ruggedized
  • Hardened
  • Up to two Ethernet ports
  • Transparent LAN Bridging
  • Automatic Learning, Aging, and Filtering

ORDERING INFORMATION

Part Number Description
CL1311R/L/CC/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Local); Conformal Coated; 1 x10/100; -40 to 85C; 100-240VAC
CL1311R/L/DC CopperLink Ruggedized Long Range Ethernet Extender (Local); 1 pair; 1 x10/100; -40 to 85C; internal internal +12 to +48VDC
CL1311R/L/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Local); 1 x10/100; -40 to 85C; 100-240VAC
CL1311R/R/CC/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Remote); Conformal Coated; 1 x10/100; -40 to 85C; 100-240VAC
CL1311R/R/DC CopperLink Ruggedized Long Range Ethernet Extender (Remote); 1 pair; 1 x10/100; -40 to 85C; internal internal +12 to +48VDC
CL1311R/R/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Remote); 1 x10/100; -40 to 85C; 100-240VAC
CL1314R/L/CC/DC Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Local); Conformal Coated; 4 x10/100; -40 to 85C; 12-48VDC
CL1314R/L/CC/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Local); Conformal Coated; 4 x10/100; -40 to 85C; 100-240VAC
CL1314R/L/DC CopperLink Ruggedized Long Range Ethernet Extender (Pre-Config Local); 1 pair; 4 x10/100; -40 to 85C; internal +12 to +48VDC
CL1314R/L/E Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Local); 4 x10/100; -40 to 85C; No Power Supply
CL1314R/L/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Local); 4 x10/100; -40 to 85C; 100-240VAC
CL1314R/R/CC/DC Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Remote); Conformal Coated; 4 x10/100; -40 to 85C; 12-48VDC
CL1314R/R/CC/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Remote); Conformal Coated; 4 x10/100; -40 to 85C; 100-240VAC
CL1314R/R/DC CopperLink Ruggedized Long Range Ethernet Extender (Pre-Config Remote); 1 pair; 4 x10/100; -40 to 85C; internal +12 to +48VDC
CL1314R/R/E Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Remote); 4 x10/100; -40 to 85C; No Power Supply
CL1314R/R/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Remote); 4 x10/100; -40 to 85C; 100-240VAC
CL1324R/L/DC CopperLink Ruggedized Long Range Ethernet Extender (Pre-Config Local); 2 pair; 4 x10/100; -40 to 85C; ; internal +12 to +48VDC
CL1324R/L/EUI CopperLink Ruggedized Long Range Ethernet Extender (Pre-Config Local); 2 pair; 4 x10/100; -40 to 85C; external 100-240VAC
CL1324R/R/DC CopperLink Ruggedized Long Range Ethernet Extender (Pre-Config Remote); 2 pair; 4 x10/100; -40 to 85C; internal +12 to +48VDC
CL1324R/R/EUI CopperLink Ruggedized Long Range Ethernet Extender (Pre-Config Remote); 2 pair; 4 x10/100; -40 to 85C; external 100-240VAC



DOCUMENTS

CL1314R DATASHEET
