Industrial 5-Port Unmanaged Fast-Ethernet Switch with fiber optics, DIN-Rail mount, Plastic housing

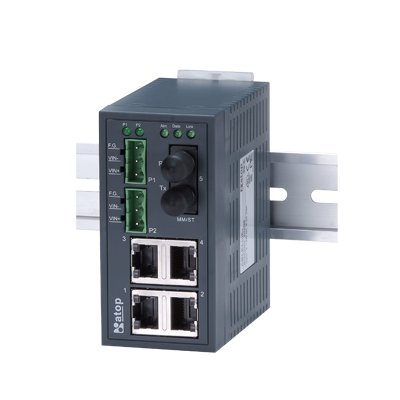

ATOP EH2005 is a Industrial 5-Port Unmanaged Fast-Ethernet Switch with 4 x 10/100BaseT(X) RJ45 Fast-Ethernet Ports and 1 x fiber port with ST (-Fm model) or SC (-Fs model)

FEATURES

  • 4 x 10/100BaseT(X) RJ45 Fast-Ethernet Ports
  • 10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection
  • 1 x fiber port with ST (-Fm model) or SC (-Fs model)
  • Broadcast storm protection
  • Support IEEE 802.3/ 802.3u/ 802.3x
  • Local area transmit distance of 2 Km with Multi-mode Fiber connections
  • Long-haul transmit distance of 20 Km with Single-mode Fiber connections
  • Redundant DC power inputs
  • Operating temperature ranges from 0~60°C
  • Rugged high-strength plastic case
  • DIN-Rail or wall mount

ORDERING INFORMATION

Part Number Article Number Description
EH2005-Fm 1P1EH2005FM001G Industrial 5-port Unmanaged Ethernet Switch with 4x 10/100TX & 1x 10/100FX, multi-mode
EH2005-Fs 1P1EH2005FS001G Industrial 5-port Unmanaged Ethernet Switch with 4x 10/100TX & 1x 10/100FX, Single-mode



DOCUMENTS

EH2005 BROCHURE
