EL100-3U/1TX-1FX-SM-ST
EL100-3U/1TX-1FX-SM-ST

eks-Engel

EL100-3U/1TX-1FX-SM-ST

Request a quote

045000151EV10-00 - EKS Media DIN-Rail Convertor  with 1 x 10/100Base TX RJ45 + 1 x 100Base FX Single-mode ST fiber port

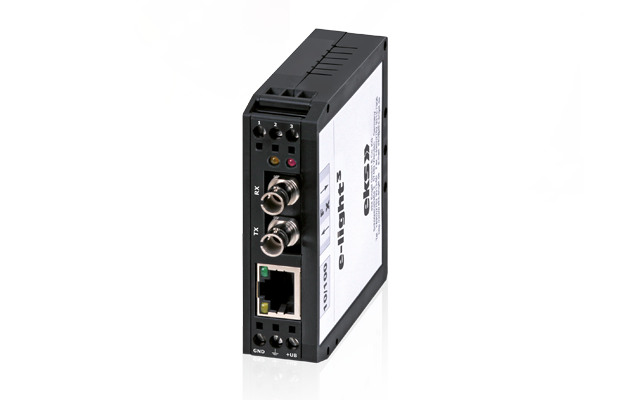

EKS EL100-3U/1TX-1FX-SM-ST is a 2-port Unmanaged media converter with 1 x 10/100Base-TX RJ45 + 1 x 100Base-FX, Single-mode (5km) ST fiber port

PRODUCT FEATURES

• DIN-Rail mounting
• Compact plastic housing – dimensions 82 x 93 x 22.5 mm
• 1 x 10/100Base-TX RJ45 port and 1 x 100Base FX Multimode SC fiber port
• For point to point applications over Single-mode fiber-optic typically up to 30Kms
• Wide Operating Temperature range –10 °C – +55 °C
• Dual ST fiber connectors
• Wide power input range 12–65 VDC

ORDERING INFORMATION

Part Number Article Number Description
EL100-3U/1TX-1FX-SM-ST 045000151EV10-00 EKS Media DIN-Rail Convertor with 1 x 10/100Base TX RJ45 port + 1 x 100Base FX Single-mode ST fiber port



DOCUMENTS

EL100-3U/1TX-1FX-SM-ST DATASHEET
