EL100-4U/8x10/100TX

0500801000000EV00-00 - EKS EL100-4U/8x10/100TX Unm. IE Switch (Extended)

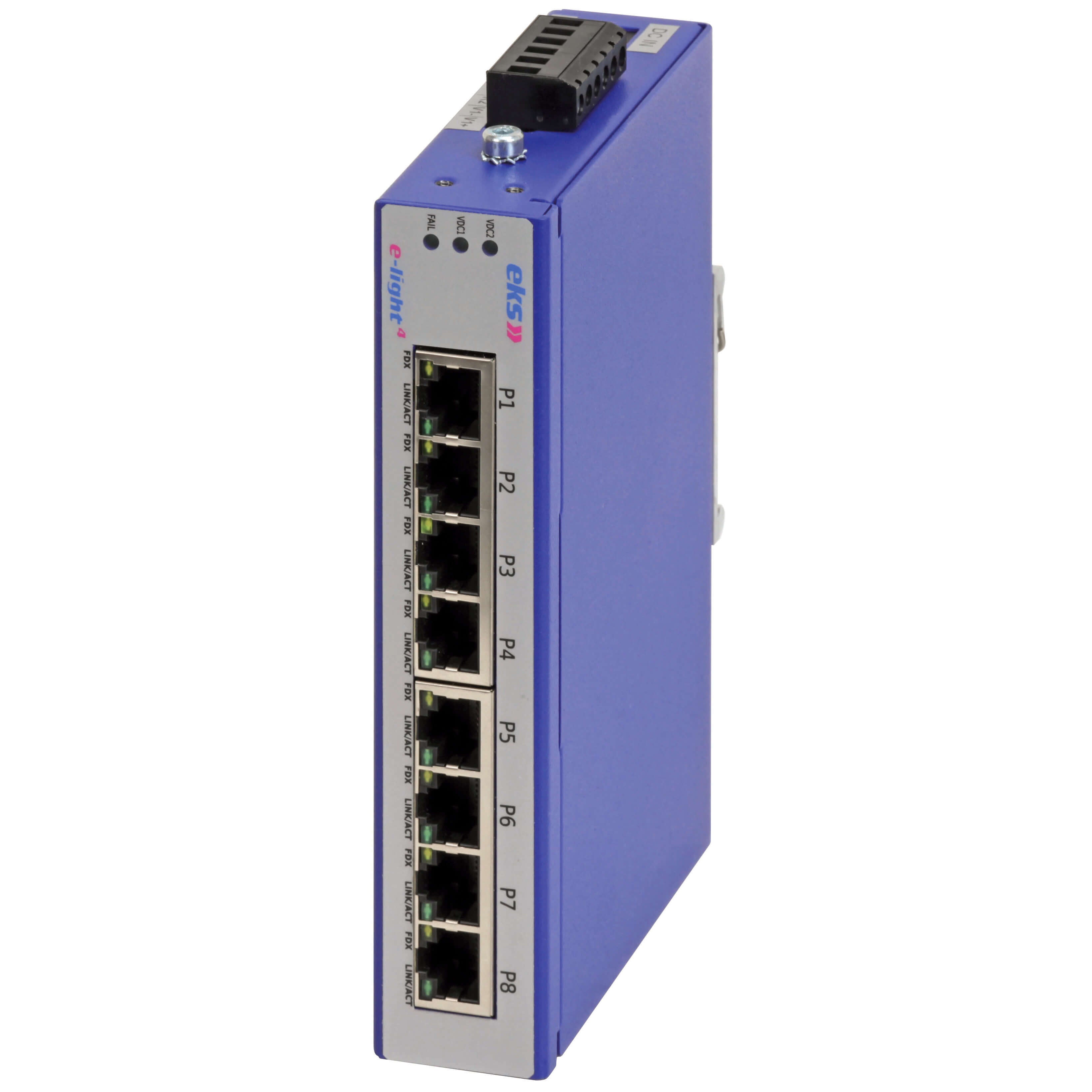

EKS EL100-4U-8TX is an 8-port unmanaged switch with 8 x 10/100Base-TX

PRODUCT FEATURES

• TX-Port RJ45 / Auto-Negotiation / Auto MDI/MDI-X / Supports length up to 100 m (CAT 6)
• IEEE IEEE 802.3 10Base-T Ethernet / IEEE 802.3u 100Base-TX und 100Base-FX Fast Ethernet
• Status-LEDs Power (green) / failure (red) / Port LEDs (yellow/green)
• Power supply 12–30 VDC, other voltages on request
• Failure relay (optional) 25 VDC (1 A) / 60 VDC (0,3 A)
• Power consumption 5 Watts, 200 mA (24 V)
• Potential separation 500 VDC
• Operating temperature –40 °C – +70 °C
• EMC EN61000-6-2 / EN55022 Class B + A1 + A2
• Weight 570 g
• Dimensions 60 x 100 x 113 mm (60 x 120 x 113 mm incl. connector)
• Housing Stainless steel, powder coated

ORDERING INFORMATION

Part Number Article Number Description
EL100-4U/8x10/100TX 0500801000000EV00-00 8-port unmanaged switch with 8 x 10/100Base-TX



DOCUMENTS

EL100-4U-8TX DATASHEET
