EL2211 Series
EL2211 Series

EtherWAN

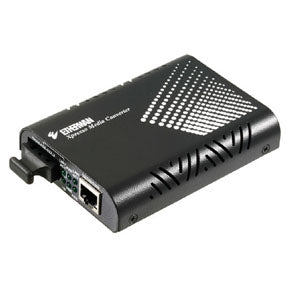

EL2211 Series

10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter

EtherWAN EL2211 Series provides media conversion between 10/100/1000BASE-T(X) and 1000BASE-SX/LX/BX Fiber. Through DIP switch selection, Link-Fault-Pass-Through (LFPT) function can be active or disabled. With Gigabit transmission rate, the EL2211 supports Jumbo Frame up to 9K bytes. The EL2211 is the ideal media converter for enterprise environments.

FEATURES

  • Auto 10/100/1000BASE-TX and 1000BASE-SX/LX/BX Ethernet transmission conversion
  • 1000Mbps Full duplex, 10/100MBps Full/Half duplex
  • Operating Temperature -20 to 70°C
  • Wall mounting, or in EMC1600 Chassis System
  • Weight 150g
  • Aluminium Case
  • UL 60950 Certification

CONFIGURATOR

Model
EL2211-X1Z 10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter



Gigabit Port Options (X)
3 1000BASE-SX(SC) - 550m (850nm)
4 1000BASE-SX (SC) - 2Km (1310nm)
5 1000BASE-SX (ST) - 550m (850nm)
A 1000BASE-LX (SC) - 10Km
B 1000BASE-LX (SC) - 20Km (1310nm)
E 1000BASE-LX (SC) - 40Km (1310nm)
R 1000BASE-BX (SC) WDM - TX:1310nm/RX:1550nm - 20Km
S 1000BASE-BX (SC) WDM - TX:1550nm/RX:1310nm - 20Km



Power Adapter Options (Z)
E with external power adapter for AU
E with external power adapter for EU
J with external power adapter for JP
K with external power adapter for UK
U with external power adapter for USA
3C with external power adapter for China



DOCUMENTS

BROCHURE
