ACKSYS

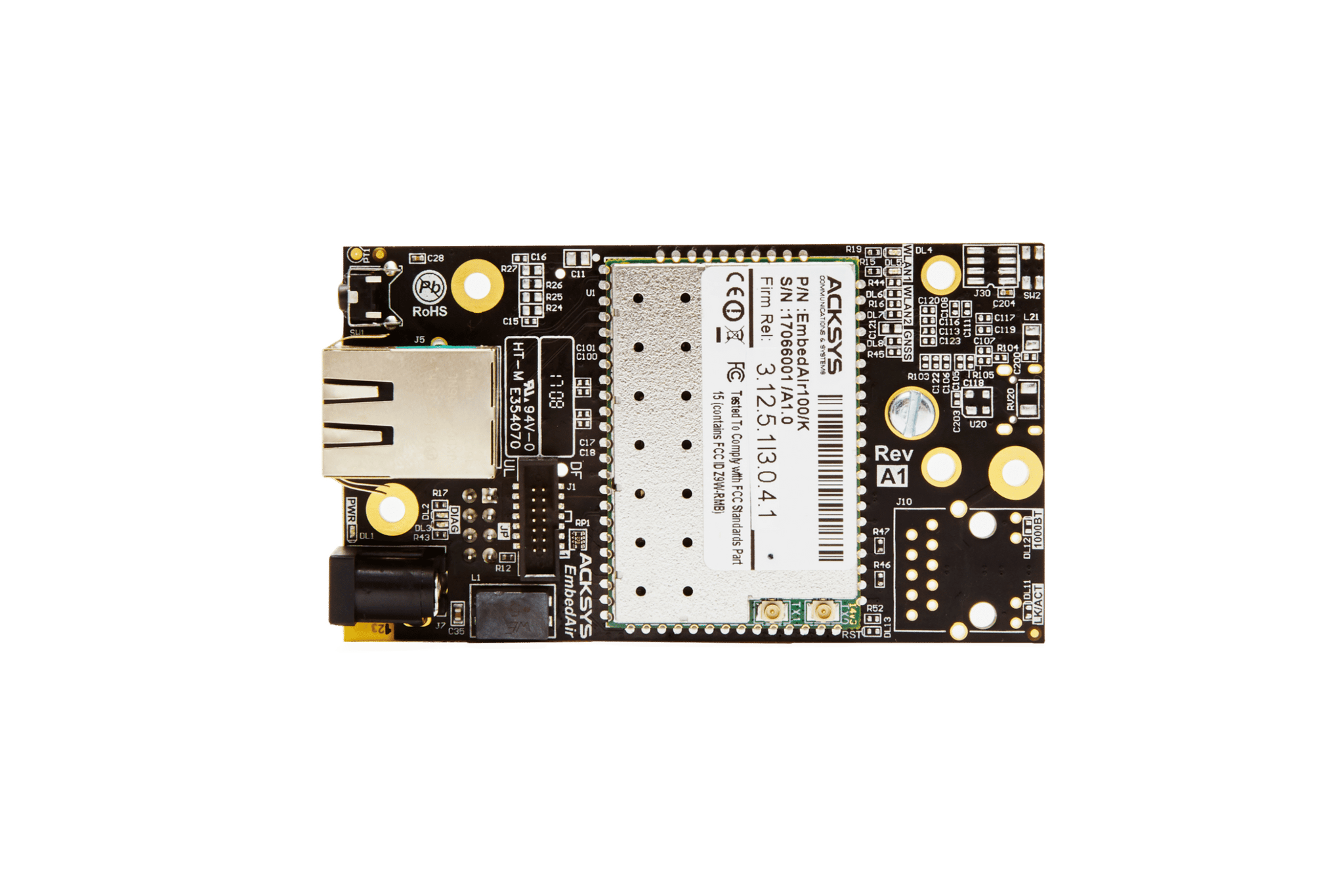

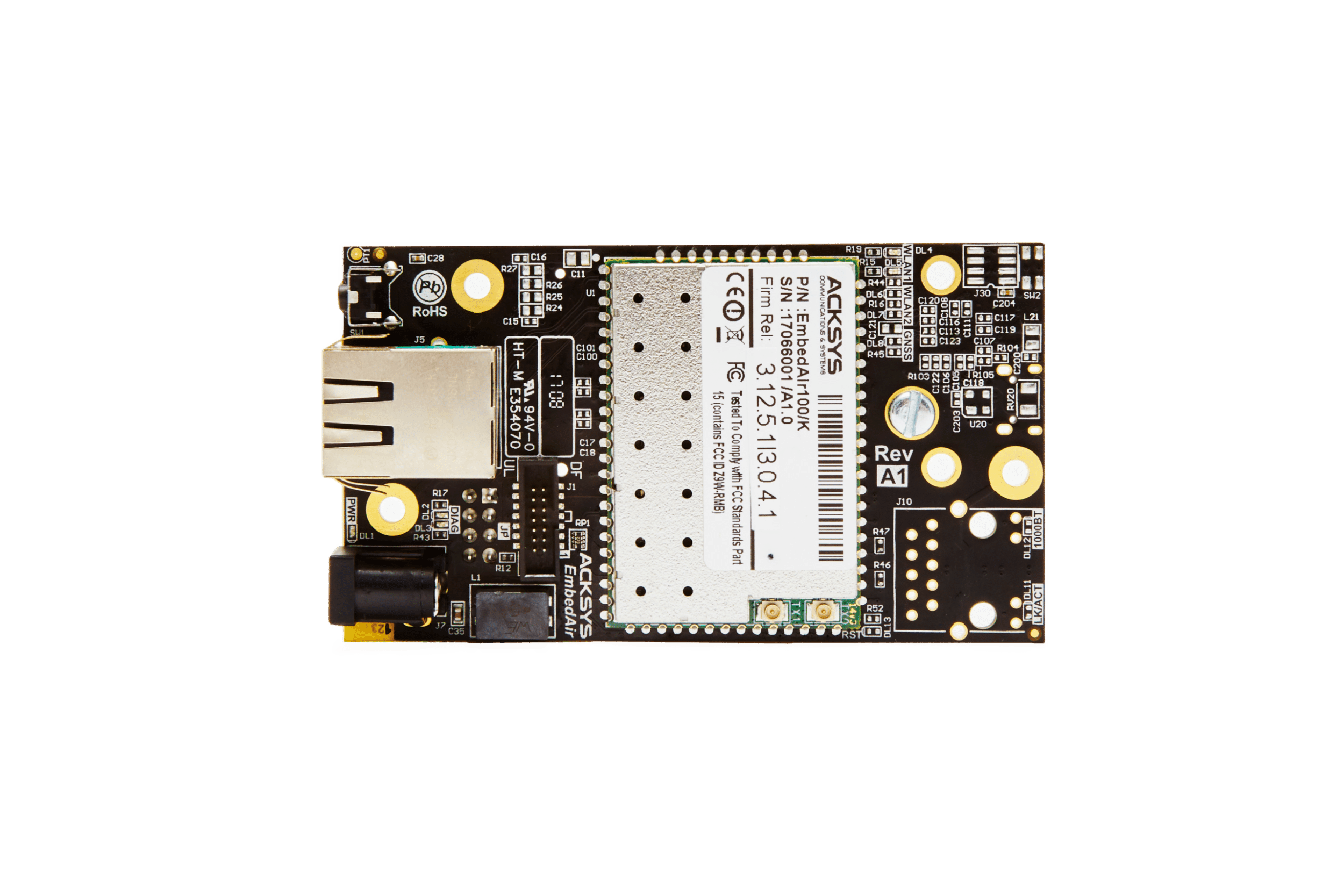

EmbedAir100
Request a quoteReady-to-use WiFi module for integration, access point, client, repeater and Mesh point
EmbedAir100 module by ACKSYS is designed to quickly and easily add a WiFi connectivity to any Ethernet equipment or embedded electronics. Ready to use and requiring no external software or drivers, EmbedAir100 considerably reduces development costs, shortens time-to-market and guarantees the longevity of industrial equipment.
Ideal applications: Equipment Manufacturers
FEATURES
- Ready to use standalone, requiring no external software or drivers
- All-in-one: AP/client/repeater/Mesh/router
- Fast data rates up to 300 Mbps – WiFi 802.11n – MIMO 2T2R – 2.4/5 GHz
- Fast roaming < 30 ms
- WaveOS operating system: advanced security WPA3, 802.1X Radius, Firewall,OpenVPN, IPSec, GRE tunnel
- Configuration via: Internet browser, management and supervision software WaveManager, SNMP
- Mesh and routing functions
- Easy to fit small sized PCB (L:89 x l:51 x h:28mm)
ORDERING INFORMATION
| Part Number | Description |
|---|---|
| EmbedAir100/T | 802.11n 2T2R WiFi access point, Ethernet bridge, repeater & Mesh point embedded module, TTL Ethernet interface, +5VDC power supply (HE10 connector) |
| EmbedAir100/K | 802.11n 2T2R WiFi access point, Ethernet bridge, repeater & Mesh point embedded module, RJ45 Ethernet interface, +5VDC power supply (ø 2.1 jack connector) |
| EmbedAir/CB | Evaluation board with antennas and power supply included. EmbedAir100 or EmbedAir1000 module must be ordered with. |
