EX27000 Series
EX27000 Series

EtherWAN

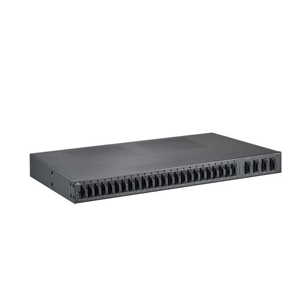

EX27000 Series

Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

EtherWAN EX27000 series is equipped with 24 fast Ethernet ports and 4 gigabit uplink ports with fixed fiber or SFP options. Industrial-grade allows for fan-less operation in high EMI and vibration environments with a temperature range from -10 to 60°C (14 to 140°F).

FEATURES

  • 24 x 10/100BASE-TX ports
  • 24 x 100BASE-FX ports
  • 4 x Gigabit ports
  • Operating Temperature -10°C to 60°C
  • Rack mounting
  • Weight 5Kg
  • Metal case
  • IP30



CONFIGURATOR

Model
EX27604-0XYZ 24-port 10/100BASE-TX +4-port Gigabit Managed Ethernet Switch
EX27424-WXYZ 16-port 10/100BASE-TX +8-port 100BASE-FX +4-port Gigabit Managed Ethernet Switch
EX27244-WXYZ 8-port 10/100BASE-TX +16-port 100BASE-FX +4-port Gigabit Managed Ethernet Switch
EX27064-WXYZ 24-port 100BASE-FX +4-port Gigabit Managed Ethernet Switch
EX27064-V0VZ 24-port 100BASE-SFP +4-port Gigabit SFP Combo Managed Ethernet Switch

*Rack mounting kit included.



100FX Fiber Options (W)
1 Multi Mode (SC) - 2Km
2 Multi Mode (ST) - 2Km
6 Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-2Km
7 Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-2Km
8 Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-5Km
9 Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-5Km
A Single Mode (SC) - 20Km
P Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
Q Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
V SFP



Number of Fixed Gigabit Fibers (X)
0 None
4 Four Gigabit Fiber Ports



Gigabit Port Options (Y)
3 1000BASE-SX (SC) - 550m
4 1000BASE-SX (SC) - 2Km
A 1000BASE-LX (SC) - 10Km
B 1000BASE-LX (SC) - 20Km
R 1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
S 1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
V 4-port 100/1000BASE SFP Combo with 10/100/1000BASE-TX

 *More Gigabit options also available upon request.



Power Input Interface (Z)
T ±48VDC (Terminal Block)
W 88-300VDC or 100-240VAC (Terminal Block)
C 100-240VAC (AC Inlet)
TR ±48VDC Redundant (Terminal Block)
WR 88-300VDC or 100-240VAC Redundant (Terminal Block)
CR 100-240VAC Redundant (AC Inlet)



DOCUMENTS

BROCHURE
