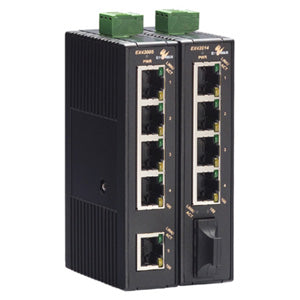

EX42000 Series
EX42000 Series

EtherWAN

EX42000 Series

Request a quote

Unmanaged 5-port 10/100BASE Ethernet Switch

EtherWAN EX42000 Series is a 5-port compact industrial unmanaged Fast Ethernet switch with 5 x Fast 10/100BASE-TX, or a combination of 4 x 10/100BASE-TX and 1 x 100BASE-FX

FEATURES

  • 4 to 5-port 10/100BASE-TX
  • 1-port 100BASE-FX Ethernet Switch
  • Operating Temperature -10 to 60°C
  •  DIN-Rail
  • Weight 0.2Kg
  • Plastic case
  • IP30



CONFIGURATOR

Model
EX42005-00-1-A 5-port 10/100BASE-TX Industrial Unmanaged Ethernet Switch with 4kV surge protection
EX42014-XY-1-A 4-port 10/100BASE-TX +1-port 100BASE-FX Industrial Unmanaged Ethernet Switch with 4kV surge protection

*DIN-Rail mounting kit included.



100FX Fiber Options (XY)
1A Multi Mode (SC) - 2Km
1B Multi Mode (ST) - 2Km
2A Single Mode (SC) - 20Km
2D Single Mode (ST) - 20Km
2E Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
2G Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-20Km

 *More 100FX fiber options also available upon request.



Optional Accessories
HDR-30-24 30W/1.5A DIN-Rail 24VDC Industrial Power Supply
HDR-60-24 60W/2.5A DIN-Rail 24VDC Industrial Power Supply
EDR-75-24 75W/3.2A DIN-Rail 24VDC Industrial Power Supply
EX41-145046-X Power Supply 45W 12VDC with Open Wire (X) = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA
