Greyhound 103/105/106 Series

Request a quote

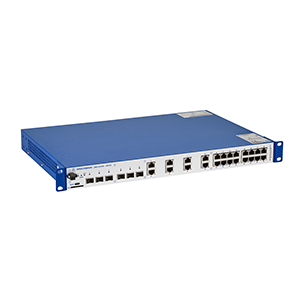

Rackmount Ethernet Switches up to 30 ports

GREYHOUND 105/106 Ethernet switches combine hardened industrial hardware with  high-performance switching and routing* capabilities to deliver fast, secure, cost-effective and future-proof connectivity.

FEATURES

  • 30 ports in 1U fanless rackmount enclosure
  • Tri-speed fiber SFP slots (1, 2.5 and 10 Gigabit speeds); up to six 10 Gigabit Ethernet ports available
  • Power supplies for many voltage ranges  (24-48 VDC, 110-240 VAC, 110-250 VDC); redundant power supplies also available
  • Operating temperature of –10°C to +60°C
  • Comprehensive HiOS software available for advanced security (Layer 2 or 3*), with free updates in the field
  • Developed according to an independently certified international security standard, IEC 62443-4-1 (secure development  life cycle)
  • Supporting the MACsec technology tackling the needs of enhanced network security through Layer 2 encryption and authentication

ORDERING INFORMATION

Greyhound 103

Part Number Article Number Description
GRS103-6TX/4C-1HV-2A 942 298 002 26 Ports in total, 4 x FE/GE TX/SFP and 6 x FE TX fix installed; via Media Modules 16 x FE
GRS103-6TX/4C-1HV-2S 942 298 001 26 Ports in total, 4 x FE/GE TX/SFP and 6 x FE TX fix installed; via Media Modules 16 x FE
GRS103-6TX/4C-2HV-2A 942 298 004 26 Ports in total, 4 x FE/GE TX/SFP and 6 x FE TX fix installed; via Media Modules 16 x FE
GRS103-6TX/4C-2HV-2S 942 298 003 26 Ports in total, 4 x FE/GE TX/SFP and 6 x FE TX fix installed; via Media Modules 16 x FE
GRS103-22TX/4C-1HV-2A 942 298 006 26 Ports in total, 4 x FE/GE TX/SFP , 22 x FE TX
GRS103-22TX/4C-1HV-2S 942 298 005 26 Ports in total, 4 x FE/GE TX/SFP , 22 x FE TX
GRS103-22TX/4C-2HV-2A 942 298 008 26 Ports in total, 4 x FE/GE TX/SFP , 22 x FE TX
GRS103-22TX/4C-2HV-2S 942 298 007 26 Ports in total, 4 x FE/GE TX/SFP , 22 x FE TX



Greyhound 105

Part Number Article Number Description
GRS105-24TX/6SFP-1HV-2A 942 287 001
 30 Ports in total, 6x GE/2.5GE SFP slot + 8x FE/GE TX ports + 16x FE/GE TX ports
GRS105-24TX/6SFP-2HV-2A 942 287 002
 30 Ports in total, 6x GE/2.5GE SFP slot + 8x FE/GE TX ports + 16x FE/GE TX ports
GRS105-24TX/6SFP-2HV-3AUR GRS1??-6F??16TS????HHS?????XX.X.XX Configurator
GRS105-16TX/14SFP-1HV-2A 942 287 004
 30 Ports in total, 6x GE/2.5GE SFP slot + 8x GE SFP slot + 16x FE/GE TX ports
GRS105-16TX/14SFP-2HV-2A 942 287 005
 30 Ports in total, 6x GE/2.5GE SFP slot + 8x GE SFP slot + 16x FE/GE TX ports



Greyhound 106

Part Number Article Number Description
GRS106-16TX/14SFP-2HV-3AUR 30 Ports in total, 6x GE/2.5GE/10GE SFP(+) slot + 8x GE/2.5GE SFP slot + 16x FE/GE TX ports
GRS106-24TX/6SFP-1HV-2A 942 287 007
 30 Ports in total, 6x GE/2.5GE/10GE SFP(+) slot + 8x FE/GE/2.5GE TX ports + 16x FE/GE TX ports
GRS106-24TX/6SFP-2HV-2A 942 287 008
 30 Ports in total, 6x GE/2.5GE/10GE SFP(+) slot + 8x FE/GE/2.5GE TX ports + 16x FE/GE TX ports
GRS106-24TX/6SFP-2HV-3AUR GRS1??-6F??16TS????HHS?????XX.X.XX Configurator
GRS106-16TX/14SFP-1HV-2A 942 287 010
 30 Ports in total, 6x GE/2.5GE/10GE SFP(+) slot + 8x GE/2.5GE SFP slot + 16x FE/GE TX ports
GRS106-16TX/14SFP-2HV-2A 942 287 011
 30 Ports in total, 6x GE/2.5GE/10GE SFP(+) slot + 8x GE/2.5GE SFP slot + 16x FE/GE TX ports
GRS106-16TX/14SFP-2HV-3AUR GRS1??-6F??16TS????HHS?????XX.X.XX Configurator



DOWNLOADS

Greyhound 103 Datasheet

Greyhound 105/106 Datasheet
