942170007 - Managed 12-port Switch
Std Part No: BRS30-0804OOOO-STCY99HHSESXX.X.XX

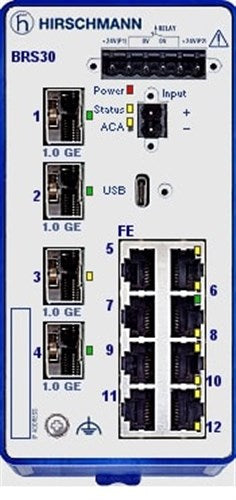

Hirschmann BRS30-8TX/4SFP is a 12-port managed switch with 8x 10/100BASE TX / RJ45, 4x 100/1000Mbit/s fiber, 4x SFP Slot
PRODUCT FEATURES
• Compact DIN-Rail housings
• 8 x 10/100Base TX RJ45 fixed ports
• 4 x 100/1000Base Dual speed SFP slots (requires SFPs to be ordered separately) for fiber-optic ports
• Real-time Time Sensitive Network (TSN) Ethernet support for precise data transmission
• Advanced security features including wire-speed access control lists (ACL) and automatic denial-of service (DoS) prevention
• Supports Hirschmann ‘Hiper Ring’redundancy , MRP and RSTP redundancy protocols
• Upgrade path for RS30-0802O6O6SDAE Rail series switch
ORDERING INFORMATION
Essential Part Number |
Part Number |
Article Number |
Description |
BRS30-8TX/4SFP |
BRS30-0804OOOO-STCY99HHSESXX.X.XX |
942 170-007 |
12 Ports in total: 8x 10/100BASE TX / RJ45; 4x 100/1000Mbit/s fiber ; 1. Uplink: 2 x SFP Slot (100/1000 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100/1000 Mbit/s) |
DOCUMENTS
BRS30-8TX/4SFP DATASHEET
