MS30-0802SAAE - Hirschmann - IndustrialComms
MS30-0802SAAE - Hirschmann - IndustrialComms

Hirschmann

MS30-0802SAAE

Request a quote

943435005 - MICE 3 slot backplane Managed GE/FE Switch

MS30 Series products are now obsolete. There is not a direct replacement offered but we recommend Hirschmann MSP30/MSP40 Series as the most suitable alternative product

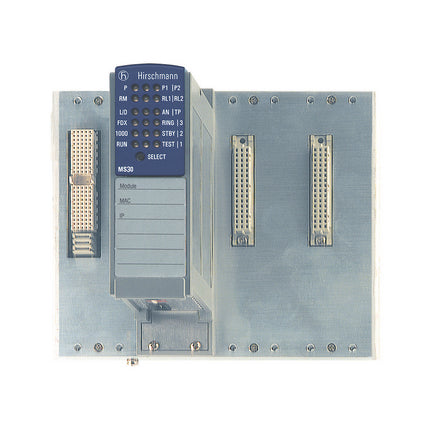

Hirschmann MS30-0802SAAE is a MICE 3 slot backplane Managed GE/FE switch. 2 GE uplink ports and 8 FE ports max. Enhanced software.

The MS30-0802SAAE is a modular switch with 3 module slots offering 1 x Gigabit module (2 ports) and 2 x FE modules for up to 8 Fast Ethernet (100Base) ports. Using MICE modules (MM2 and MM3 series) a wide choice of FE port options can be selected. Use module MM4-2TX/SFP for Gigabit module requirement.

PRODUCT FEATURES

• Compact DIN-Rail mounting backplane design
• Fully Managed layer 2 switch
• All switches support 2 Gigabit uplink ports and up to 8 Fast Ethernet ports
• Select appropriate FE modules to give required number of 10/100Base TX RJ45 or 100 Base FX ports (MM or SM). To be ordered separately
• Select appropriate Gigabit module for uplink and Gigabit ring applications (Left side slot only)
• SFPs required for Gigabit fiber uplinks (to be ordered separately)
• Hirschmann ‘Hiper Ring’ redundancy supported
• Available with a wide range of industrial approvals and certifications
• Available with Enhanced (E) software
• 5 year Warranty

ORDERING INFORMATION

Part Number Article Number Description
M30-0802SAAE 943 435-005 MICE 3 slot backplane Managed GE/FE switch. 2 GE uplink ports and 8 FE ports max. Enhanced software



DOCUMENTS

MS30-0802SAAE DATASHEET
