Hirschmann

OCTOPUS 16M

Request a quote

943912001 - Managed IP67 Switch

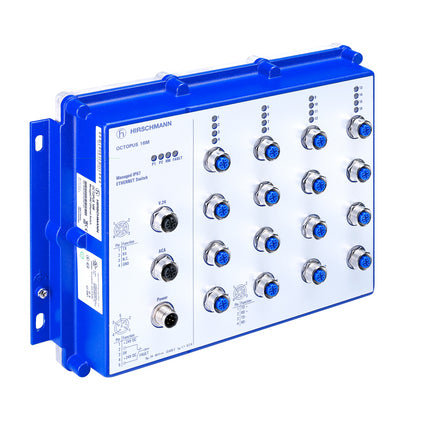

Hirschmann Octopus 16M is a 16-port Managed IP67 Fast Ethernet Switch with 16 x 10/100 BASE-TX ports, M12 D coding, 4-pole, TP cable and Layer 2 Professional Software

PRODUCT FEATURES

• 16 port Managed Redundant IP 67 Fast Ethernet Switch
• 16 x 10/100Base-TX ports, M12 D coding, 4-pole, TP cable, auto-crossing, auto-negotiation, auto-polarity
• Redundant power inputs
• Layer 2 Professional Software (see Data Sheet for software features)
• Power requirements: Redundant 9.6-60V DC by 1 x M12 5-pin connector, A coding
• Current consumption at 24V DC: 380mA
• Dimensions: 261 x 189 x 70 mm
• Weight: 1920g
• Operating Temperature range: -40°C to +70°C
• Protection class: IP 67

ORDERING INFORMATION

Part Number Article Number Description
OCTOPUS 16M 943 912-001 16-port Managed Redundant IP 67 Fast Ethernet Switch



DOCUMENTS

OCTOPUS 16M DATASHEET
