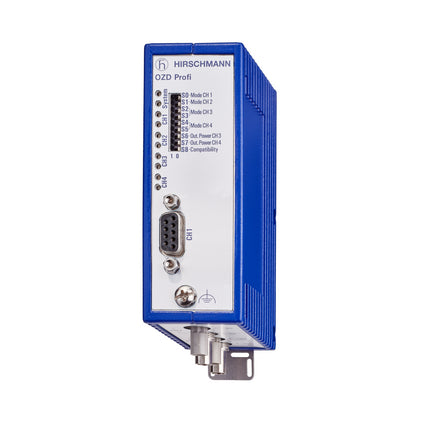

OZD Profi 12M G12

942 148-002 OZD Profibus Fiber Repeater

Hirschmann

  • Sale
  • £502.68
  • Regular price
    £591.39

OZD Profi 12M G12 - 942148002

Hirschmann OZD Profi 12 G12 is a New Generation Interface Converter Electrical/Optical for PROFIBUS-Field Bus Networks with 2 x optical: 4 sockets BFOC 2.5 (STR); 1 x electrical: Sub-D 9-pin, female

PRODUCT FEATURES

• Compact Design
• DIN-Rail mounting
• For use with Multi-mode glass fiber (OM1, OM2,OM3 and OM4 grades) and Single-mode glass fiber (OS1 and OS2 grades)
• Variants available with single-fiber channel ( type G11) for point to point applications
• Variants available with two fiber channels for Multi-drop and Ring redundancy applications (type G12)
• Typical transmission distances Multi-mode fiber -3Km and Single-mode fiber – 15Km
• Single Profibus connector (DB9) for Profibus node connection and ST (BFOC) fiber connections ( 2 per channel)
• Ex-zone 2 (Class 1, Div. 2) and ISA 12.12.01 Class 1 Div. 2; ATEX Zone 2 approvals available
• Operating temperature range: Standard versions 0 ºC to +60 ºC, PRO versions 0 ºC to +60 ºC, EEC (PRO versions -20 ºC to +60 ºC

ORDERING INFORMATION

Part Number Article Number Description
OZD Profi 12M G12 942 148-002 New Generation Profibus Dual channel Fiber repeater for Multi-mode (Glass) fiber. Redundant Ring capability



DOCUMENTS

OZD Profi 12M G12 DATASHEET
