Hirschmann Obsolete

SPIDER 1TX/1FX-SM

Request a quote

943891001 - Unmanaged 2-port Switch

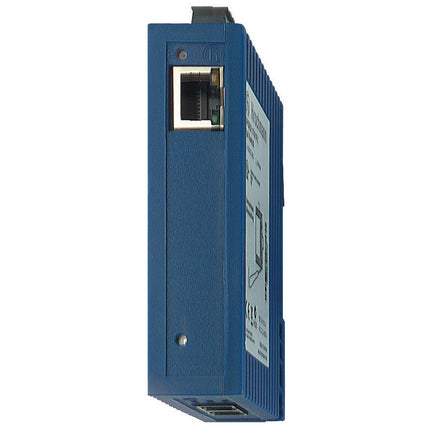

Hirschmann SPIDER 1TX/1FX-SM is a 2-port Entry Level Unmanaged Fast Ethernet Switch with 1 x 10/100BASE-TX, TP cable, RJ45 socket and 1 x 100BASE-FX, SM cable, SC sockets

This part has gone End of Life on 30th November 2020.
We may still have stock available, so please contact us for availability.

*Replaced by Part Number SSL20-1TX/1FX-SM*

PRODUCT FEATURES

• 2 port Entry Level Unmanaged Fast Ethernet Switch, for DIN rail mounting, store-and-forward-switching
• 1 x 10/100Base-TX RJ45 socket, TP cable, auto-crossing, auto-negotiation, auto-polarity
• 1 x 100Base-FX Single Mode port with SC connector
• Single mode fiber (SM) 9/125 µm: 0 – 32,5 km, 16 dB link budget at 1300 nm, A = 0,4 dB/km, 3 dB reserve, D = 3,5 ps/(nm x km)
• DIN Rail 35mm
• Operating Temperature range: 0°C to +60°C
• Protection class: IP 30


ORDERING INFORMATION

Part Number Article Number Description
SPIDER 1TX/1FX-SM (End of Life) Replaced by SSL20-1TX/1FX-SM 943 891-001 Hirschmann Spider 1TX/1FX-SM Industrial Media Converter, 1 x 10/100Base-T(X), RJ45 and 1 x 100Base-FX, Singlemode Fiber, SC, 9.6 – 32 VDC Powered, 0 to 60 deg C



DOCUMENTS

SPIDER 1TX/1FX-SM DATASHEET

SSL20-1TX/1FX-SM DATASHEET
